HB cable clamp for fastening to C-profile rails

Downloads

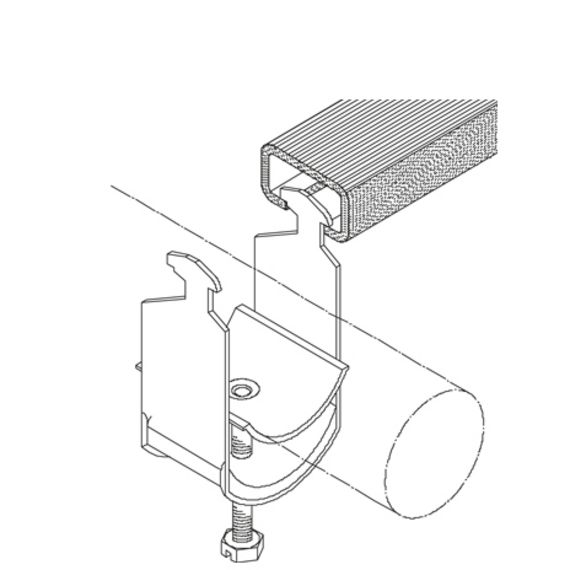

Cable clamp with full-surface vat made of galvanised steel. For fastening to C-profile rails (C) with a slot size of 11 mm.

Zinc coated

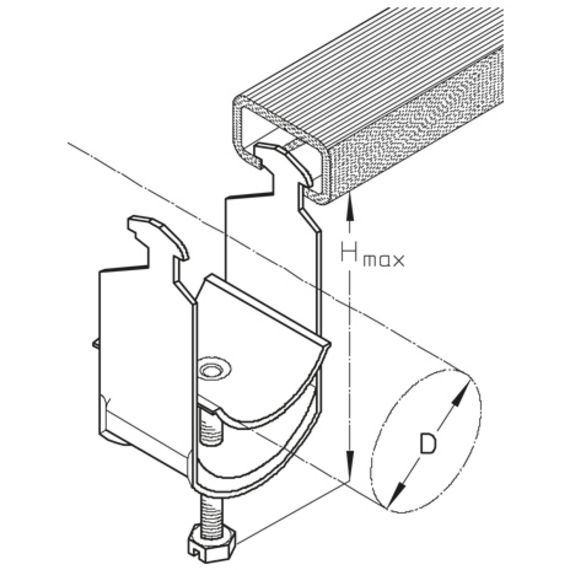

	diameter	H_maxMaximum height	torque	number of cables Maximum number of installable cables	weight
12 HB	8-12 mm	41 mm	2 Nm	1	2.5 kg/100
16 HB	12-16 mm	46 mm	2 Nm	1	2.8 kg/100
20 HB	16-20 mm	50 mm	2 Nm	1	3.2 kg/100
24 HB	20-24 mm	54 mm	2 Nm	1	3.8 kg/100
28 HB	24-28 mm	58 mm	2 Nm	1	4.1 kg/100
32 HB	28-32 mm	63 mm	2 Nm	1	5.8 kg/100
36 HB	32-36 mm	67 mm	2 Nm	1	6.7 kg/100
40 HB	36-40 mm	71 mm	2 Nm	1	7.4 kg/100
44 HB	40-44 mm	81 mm	4 Nm	1	9.3 kg/100
48 HB	44-48 mm	85 mm	4 Nm	1	9.8 kg/100
52 HB	48-52 mm	90 mm	4 Nm	1	10.4 kg/100
56 HB	52-56 mm	94 mm	4 Nm	1	11.1 kg/100
60 HB	56-60 mm	98 mm	4 Nm	1	14.7 kg/100
64 HB	60-64 mm	102 mm	4 Nm	1	15.4 kg/100
70 HB	64-70 mm	109 mm	4 Nm	1	17.1 kg/100
12/2 HB	8-12 mm	58 mm	2 Nm	2	3.2 kg/100
16/2 HB	12-16 mm	67 mm	2 Nm	2	3.9 kg/100
20/2 HB	16-20 mm	75 mm	2 Nm	2	4.4 kg/100
24/2 HB	20-24 mm	84 mm	2 Nm	2	5.1 kg/100
28/2 HB	24-28 mm	92 mm	2 Nm	2	5.7 kg/100
32/2 HB	28-32 mm	101 mm	2 Nm	2	8.7 kg/100
36/2 HB	32-36 mm	109 mm	2 Nm	2	9.8 kg/100
40/2 HB	36-40 mm	117 mm	2 Nm	2	10.5 kg/100
44/2 HB	40-44 mm	127 mm	4 Nm	2	12.9 kg/100
48/2 HB	44-48 mm	135 mm	4 Nm	2	13.5 kg/100
52/2 HB	48-52 mm	144 mm	4 Nm	2	13.7 kg/100
56/2 HB	52-56 mm	152 mm	4 Nm	2	16.1 kg/100

Aluminium

	diameter	H_maxMaximum height	torque	number of cables Maximum number of installable cables	weight
12 HB-AL	8-12 mm	41 mm	1.5 Nm	1	1.7 kg/100
16 HB-AL	12-16 mm	46 mm	1.5 Nm	1	1.9 kg/100
20 HB-AL	16-20 mm	50 mm	1.5 Nm	1	2.5 kg/100
24 HB-AL	20-24 mm	54 mm	1.5 Nm	1	2.9 kg/100
28 HB-AL	24-28 mm	58 mm	1.5 Nm	1	3.2 kg/100
32 HB-AL	28-32 mm	63 mm	1.5 Nm	1	4.2 kg/100
36 HB-AL	32-36 mm	67 mm	1.5 Nm	1	4.5 kg/100
40 HB-AL	36-40 mm	71 mm	1.5 Nm	1	4.8 kg/100
44 HB-AL	40-44 mm	81 mm	3.0 Nm	1	6.4 kg/100
48 HB-AL	44-48 mm	85 mm	3.0 Nm	1	7 kg/100
52 HB-AL	48-52 mm	90 mm	3.0 Nm	1	9.8 kg/100
56 HB-AL	52-56 mm	94 mm	3.0 Nm	1	10.4 kg/100

Downloads

PDF | 5 MB

PDF | 1 MB

Select Products on NBS Source
