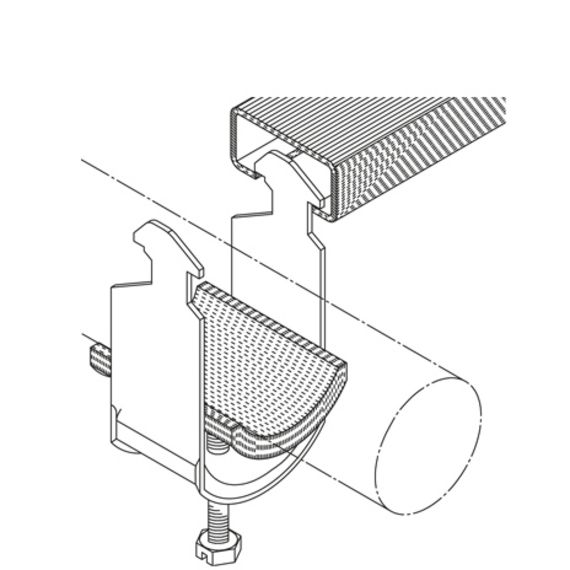

Cable clamp with full-surface vat made of galvanised steel and additional insulating vat made of polystyrene. For fastening to C-profile rails (C) with a slot size of 16 mm.
Zinc coated

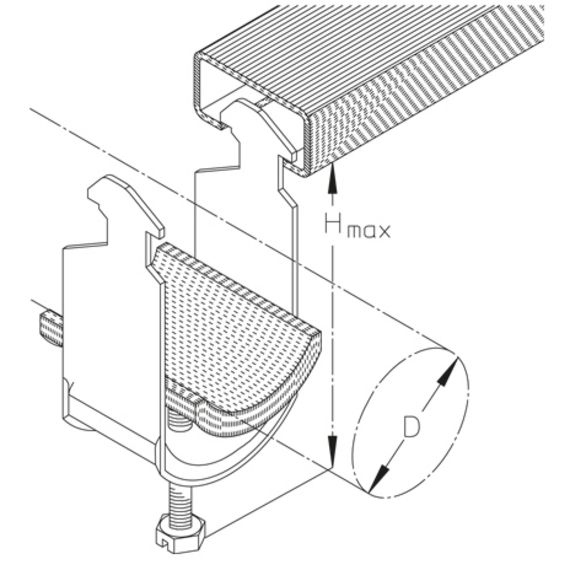

| diameter | HmaxMaximum height | torque | number of cables Maximum number of installable cables | weight | ||
|---|---|---|---|---|---|---|
| 12 H-IW | 8-12 mm | 42.5 mm | 2 Nm | 1 | 2.7 kg/100 | |
| 16 H-IW | 12-16 mm | 47.5 mm | 2 Nm | 1 | 3.1 kg/100 | |
| 20 H-IW | 16-20 mm | 51.5 mm | 2 Nm | 1 | 3.5 kg/100 | |
| 24 H-IW | 20-24 mm | 55.7 mm | 2 Nm | 1 | 3.9 kg/100 | |
| 28 H-IW | 24-28 mm | 59.7 mm | 2 Nm | 1 | 4.3 kg/100 | |
| 32 H-IW | 28-32 mm | 65 mm | 2 Nm | 1 | 6.6 kg/100 | |
| 36 H-IW | 32-36 mm | 69 mm | 2 Nm | 1 | 7.1 kg/100 | |
| 40 H-IW | 36-40 mm | 73 mm | 2 Nm | 1 | 7.8 kg/100 | |
| 44 H-IW | 40-44 mm | 83 mm | 4 Nm | 1 | 9.5 kg/100 | |
| 48 H-IW | 44-48 mm | 87 mm | 4 Nm | 1 | 10.1 kg/100 | |
| 52 H-IW | 48-52 mm | 92.5 mm | 4 Nm | 1 | 11.6 kg/100 | |
| 56 H-IW | 52-56 mm | 96.5 mm | 4 Nm | 1 | 12.2 kg/100 | |
| 60 H-IW | 56-60 mm | 100.5 mm | 4 Nm | 1 | 15.4 kg/100 | |
| 64 H-IW | 60-64 mm | 104.5 mm | 4 Nm | 1 | 16.6 kg/100 | |
| 70 H-IW | 64-70 mm | 111.5 mm | 4 Nm | 1 | 16.9 kg/100 |
