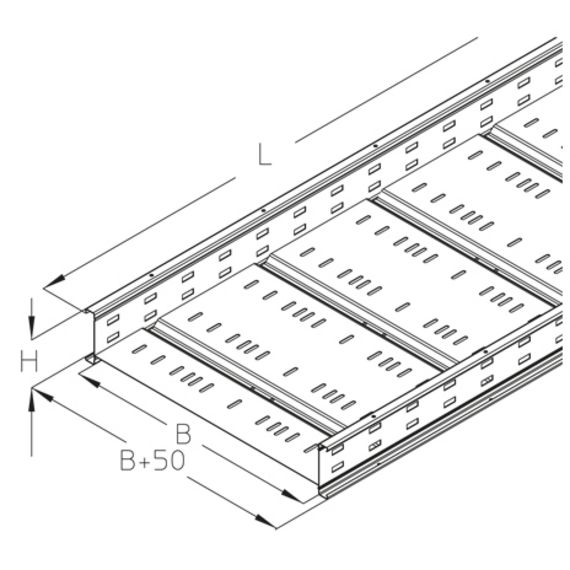

WPR 120 wide-span cable tray, height = 120 mm

Wide-span cable tray, additional transverse rigidity due to welded and ripped inlay sheet. Electrical conductivity tested according to DIN EN 61537.

Do not walk upon!

UL classified

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	Q_LKdistributed load power cable	weight
WPR 120-20S	120 mm	200 mm	6000 mm	1.50 mm	196 cm²	0.29 kN/m	0.55 kN/m	36.42 kg
WPR 120-30S	120 mm	300 mm	6000 mm	1.50 mm	294 cm²	0.44 kN/m	0.82 kN/m	42.10 kg
WPR 120-40S	120 mm	400 mm	6000 mm	1.50 mm	392 cm²	0.59 kN/m	1.1 kN/m	47.96 kg
WPR 120-50S	120 mm	500 mm	6000 mm	1.50 mm	490 cm²	0.74 kN/m	1.37 kN/m	53.84 kg
WPR 120-60S	120 mm	600 mm	6000 mm	1.50 mm	588 cm²	0.88 kN/m	1.65 kN/m	59.7 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	Q_LKdistributed load power cable	weight
WPR 120-20F	120 mm	200 mm	6000 mm	1.50 mm	196 cm²	0.29 kN/m	0.55 kN/m	38.97 kg
WPR 120-30F	120 mm	300 mm	6000 mm	1.50 mm	294 cm²	0.44 kN/m	0.82 kN/m	45.05 kg
WPR 120-40F	120 mm	400 mm	6000 mm	1.50 mm	392 cm²	0.59 kN/m	1.1 kN/m	51.32 kg
WPR 120-50F	120 mm	500 mm	6000 mm	1.50 mm	490 cm²	0.74 kN/m	1.37 kN/m	57.61 kg
WPR 120-60F	120 mm	600 mm	6000 mm	1.50 mm	588 cm²	0.88 kN/m	1.65 kN/m	63.88 kg
