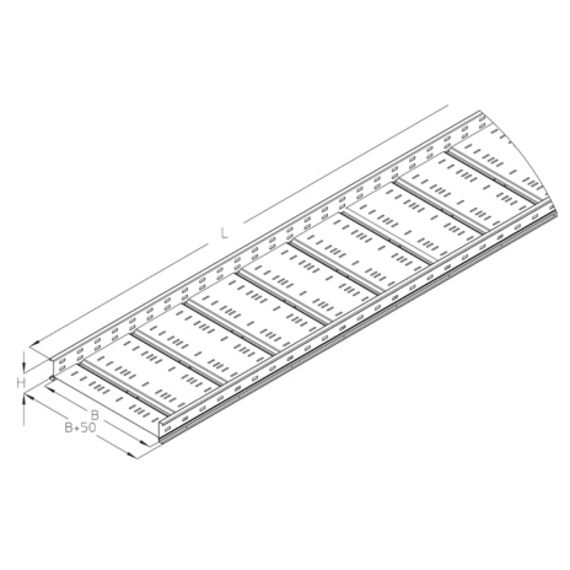

WPR 100 wide-span cable tray, height = 100 mm

Wide-span cable tray, additional transverse rigidity due to welded and ripped inlay sheet. Electrical conductivity tested according to DIN EN 61537.

This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.

Do not walk upon!

Stainless steel, according to ASTM 304 / BS 304 S 3

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	Q_LKdistributed load power cable	weight
WPR 100-20E	100 mm	200 mm	6000 mm	1.50 mm	156 cm²	0.23 kN/m	0.44 kN/m	36.26 kg
WPR 100-30E	100 mm	300 mm	6000 mm	1.50 mm	234 cm²	0.35 kN/m	0.66 kN/m	43.14 kg
WPR 100-40E	100 mm	400 mm	6000 mm	1.50 mm	312 cm²	0.47 kN/m	0.87 kN/m	50.26 kg
WPR 100-50E	100 mm	500 mm	6000 mm	1.50 mm	390 cm²	0.59 kN/m	1.09 kN/m	57.38 kg
WPR 100-60E	100 mm	600 mm	6000 mm	1.50 mm	468 cm²	0.70 kN/m	1.31 kN/m	64.48 kg
