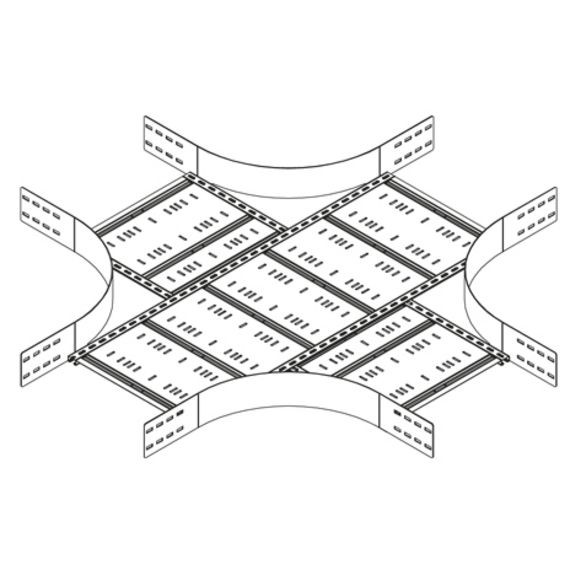

WPRK 150 wide-span crossing, height = 150 mm

wide-span cable tray crossing for horizontal change of direction with integrated connectors

Formed components must be supported at all sides.

UL classified

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

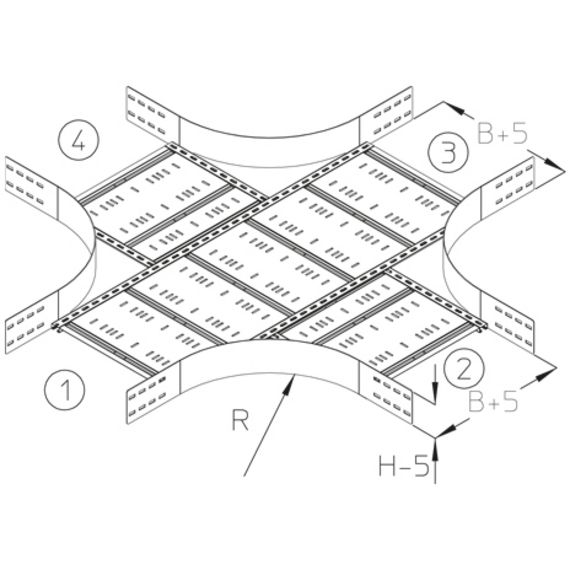

	height	width	radius	weight
WPRK 150-20F	150 mm	200 mm	450 mm	26.54 kg
WPRK 150-30F	150 mm	300 mm	450 mm	28.78 kg
WPRK 150-40F	150 mm	400 mm	450 mm	31.14 kg
WPRK 150-50F	150 mm	500 mm	450 mm	33.71 kg
WPRK 150-60F	150 mm	600 mm	450 mm	37.02 kg
