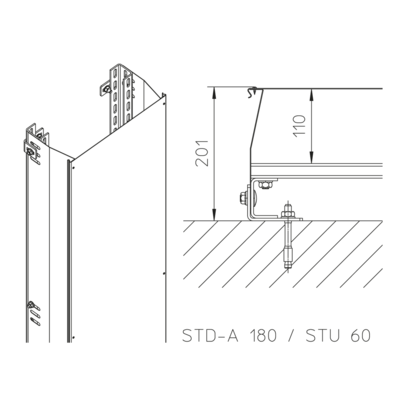

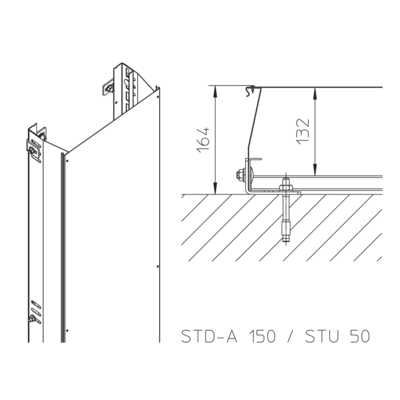

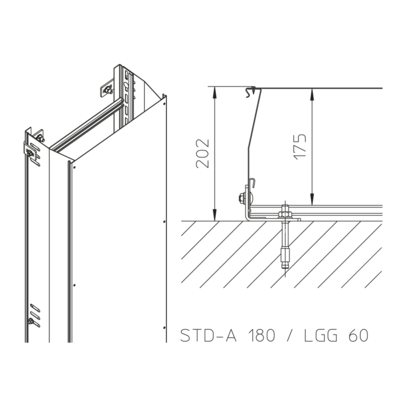

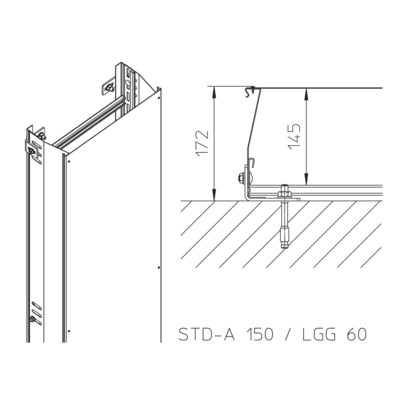

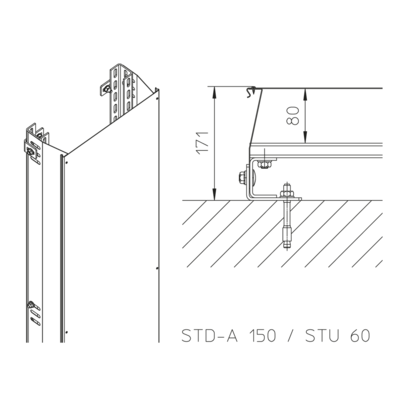

Three KLS 8X16 are required for screwing the STD-A to the LGG 60. Three KLS 10X20 are required to screw the STD-A to the STU 50 and STU 60. Three BS 4.2X13GV are required to fix the cable tray cover (RD) to the STD-A in conjunction with the sendzimir galvanised version. Three BLS 3.9X13E are required to fix the cable tray cover (RD) to the STD-A in conjunction with the hot-dip galvanised or stainless steel version. The cable tray cover and the fastening accessories are not included in the scope of delivery.
For a cable tray cover ST-RD with 3000 mm length 4x pieces STD-A are needed. Please pay attention to the corresponding number of mounting accessories.
