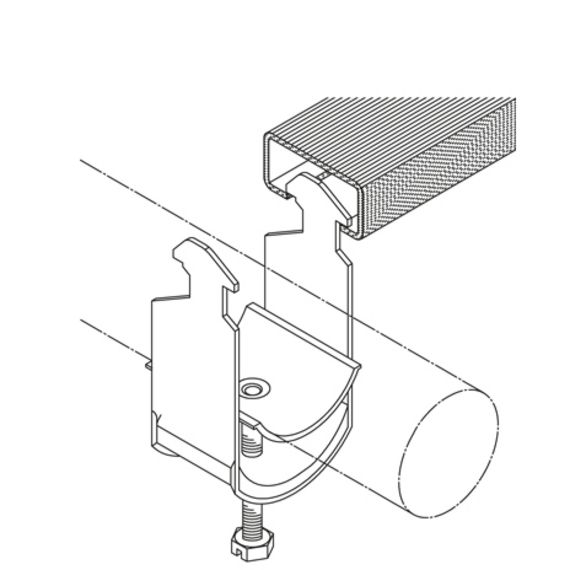

H cable clamp for fastening to C-profile rails

Downloads

Cable clamp with full-surface vat made of galvanised steel. For fastening to C-profile rails (C) with a slot size of 16 mm. certified according to DIN 4102-12

Articles with a diameter of 12-56mm are also available in stainless steel finish, material No. 1.4571 / 1.4404 (V4A).

Zinc coated

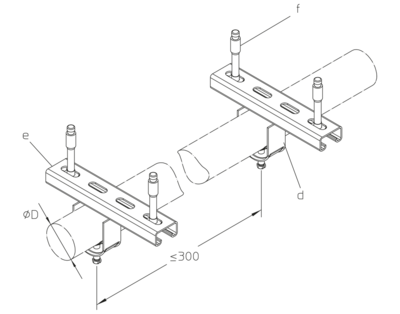

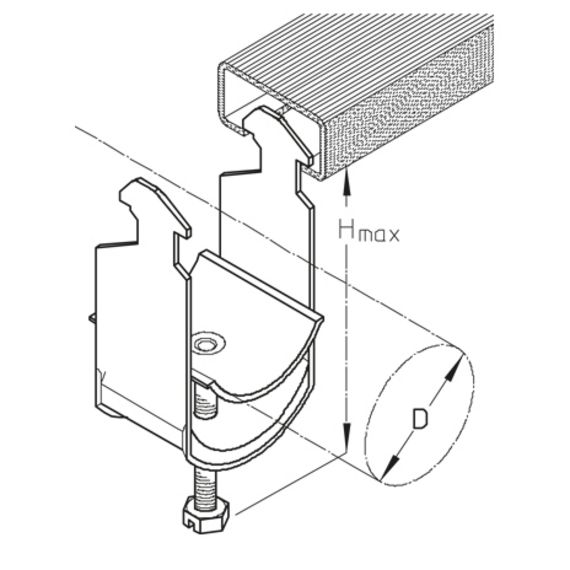

	diameter	H_maxMaximum height	torque	number of cables Maximum number of installable cables	weight
12 H	8-12 mm	41 mm	2 Nm	1	2.7 kg/100
16 H	12-16 mm	46 mm	2 Nm	1	3.2 kg/100
20 H	16-20 mm	50 mm	2 Nm	1	3.6 kg/100
24 H	20-24 mm	54 mm	2 Nm	1	3.9 kg/100
28 H	24-28 mm	58 mm	2 Nm	1	4.4 kg/100
32 H	28-32 mm	63 mm	2 Nm	1	6.3 kg/100
36 H	32-36 mm	67 mm	2 Nm	1	7 kg/100
40 H	36-40 mm	71 mm	2 Nm	1	7.5 kg/100
44 H	40-44 mm	81 mm	4 Nm	1	9.8 kg/100
48 H	44-48 mm	85 mm	4 Nm	1	10.2 kg/100
52 H	48-52 mm	90 mm	4 Nm	1	10.6 kg/100
56 H	52-56 mm	94 mm	4 Nm	1	11.3 kg/100
60 H	56-60 mm	98 mm	4 Nm	1	15.8 kg/100
64 H	60-64 mm	102 mm	4 Nm	1	16.5 kg/100
70 H	64-70 mm	109 mm	4 Nm	1	17.1 kg/100
12/2 H	8-12 mm	58 mm	2 Nm	2	3.5 kg/100
16/2 H	12-16 mm	67 mm	2 Nm	2	4 kg/100
20/2 H	16-20 mm	75 mm	2 Nm	2	4.8 kg/100
24/2 H	20-24 mm	84 mm	2 Nm	2	5.3 kg/100
28/2 H	24-28 mm	92 mm	2 Nm	2	6 kg/100
32/2 H	28-32 mm	101 mm	2 Nm	2	8.9 kg/100
36/2 H	32-36 mm	109 mm	2 Nm	2	9.6 kg/100
40/2 H	36-40 mm	117 mm	2 Nm	2	10.8 kg/100
44/2 H	40-44 mm	127 mm	4 Nm	2	13.3 kg/100
48/2 H	44-48 mm	135 mm	4 Nm	2	13.9 kg/100
52/2 H	48-52 mm	144 mm	4 Nm	2	15.2 kg/100
56/2 H	52-56 mm	152 mm	4 Nm	2	16.2 kg/100

Aluminium

	diameter	H_maxMaximum height	torque	number of cables Maximum number of installable cables	weight
12 H-AL	8-12 mm	41 mm	1.5 Nm	1	2.1 kg/100
16 H-AL	12-16 mm	46 mm	1.5 Nm	1	2.5 kg/100
20 H-AL	16-20 mm	50 mm	1.5 Nm	1	2.9 kg/100
24 H-AL	20-24 mm	54 mm	1.5 Nm	1	3.3 kg/100
28 H-AL	24-28 mm	58 mm	1.5 Nm	1	3.6 kg/100
32 H-AL	28-32 mm	63 mm	1.5 Nm	1	5 kg/100
36 H-AL	32-36 mm	67 mm	1.5 Nm	1	5.5 kg/100
40 H-AL	36-40 mm	71 mm	1.5 Nm	1	5.9 kg/100
44 H-AL	40-44 mm	81 mm	3 Nm	1	7.6 kg/100
48 H-AL	44-48 mm	85 mm	3 Nm	1	8.3 kg/100
52 H-AL	48-52 mm	90 mm	3 Nm	1	10.2 kg/100
56 H-AL	52-56 mm	94 mm	3 Nm	1	10.6 kg/100

Stainless steel, according to ASTM 304 / BS 304 S 3

	diameter	H_maxMaximum height	torque	number of cables Maximum number of installable cables	weight
12 H-E	8-12 mm	41 mm	2 Nm	1	2.7 kg/100
16 H-E	12-16 mm	46 mm	2 Nm	1	3.2 kg/100
20 H-E	16-20 mm	50 mm	2 Nm	1	3.6 kg/100
24 H-E	20-24 mm	54 mm	2 Nm	1	3.9 kg/100
28 H-E	24-28 mm	58 mm	2 Nm	1	4.4 kg/100
32 H-E	28-32 mm	63 mm	2 Nm	1	5.4 kg/100
36 H-E	32-36 mm	67 mm	2 Nm	1	6.1 kg/100
40 H-E	36-40 mm	71 mm	2 Nm	1	6.5 kg/100
44 H-E	40-44 mm	81 mm	4 Nm	1	8.7 kg/100
48 H-E	44-48 mm	85 mm	4 Nm	1	9 kg/100
52 H-E	48-52 mm	90 mm	4 Nm	1	9.3 kg/100
56 H-E	52-56 mm	94 mm	4 Nm	1	9.9 kg/100
12/2 H-E	8-12 mm	58 mm	2 Nm	2	3.5 kg/100
16/2 H-E	12-16 mm	67 mm	2 Nm	2	4 kg/100
20/2 H-E	16-20 mm	75 mm	2 Nm	2	4.8 kg/100
24/2 H-E	20-24 mm	84 mm	2 Nm	2	5.3 kg/100
28/2 H-E	24-28 mm	92 mm	2 Nm	2	6 kg/100
32/2 H-E	28-32 mm	101 mm	2 Nm	2	7.7 kg/100
