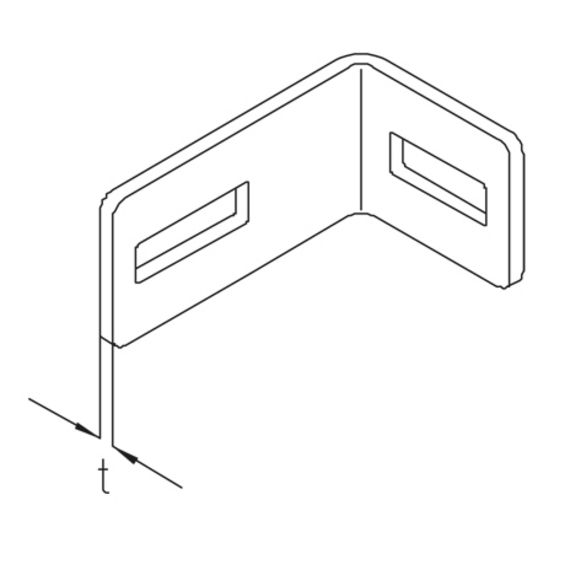

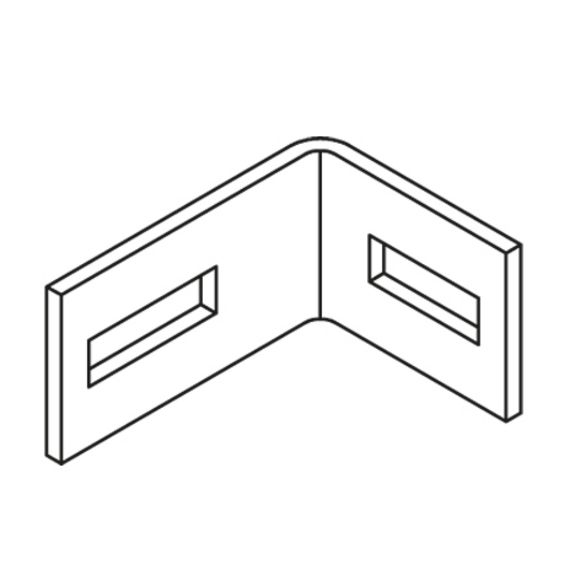

BL 4 corner angle, KHU 40/57/60

Wall angle for fastening bracket supports KHU 40/57/60 to walls.

This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.

galvanized, according to DIN EN ISO 19598 / DIN EN ISO 2081

	height	width	length	t material thickness	weight
BL 4GV	40 mm	82.5 mm	54 mm	4.00 mm	0.13 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	t material thickness	weight
BL 4F	40 mm	82.5 mm	54 mm	4.00 mm	0.15 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

	height	width	length	t material thickness	weight
BL 4E	40 mm	82.5 mm	54 mm	4.00 mm	0.15 kg
