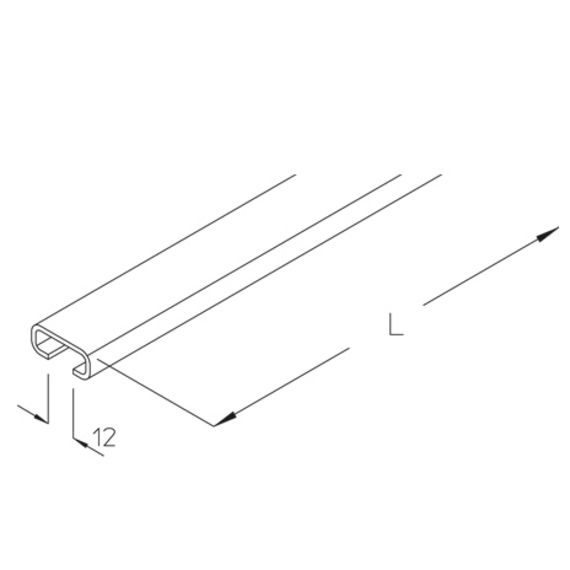

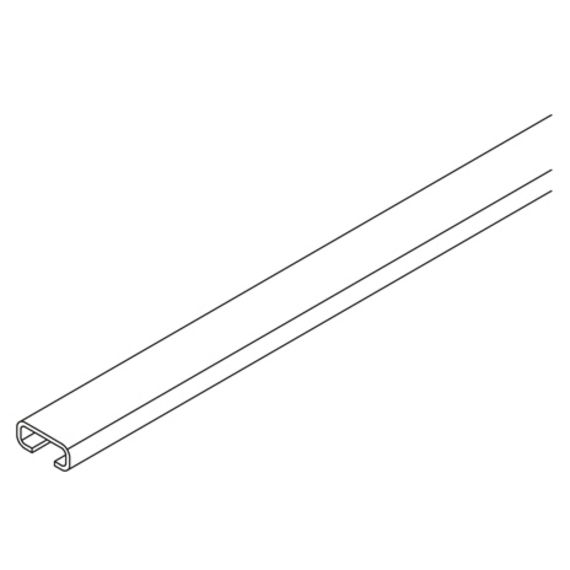

B 3 profile rail 28x12 mm, not perforated

profile rail 28x12x2,00 mm, without perforation, slot size 12 mm

Bright rolled

	height	width	length	t material thickness	weight
B 3-30B	12 mm	28 mm	3000 mm	2.00 mm	2.5 kg
B 3-60B	12 mm	28 mm	6000 mm	2.00 mm	5 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	t material thickness	weight
B 3-30F	12 mm	28 mm	3000 mm	2.00 mm	2.7 kg
B 3-60F	12 mm	28 mm	6000 mm	2.00 mm	5.3 kg

Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11

	height	width	length	t material thickness	weight
PRS A	-	-	-	-	-
B 3-30E4	12 mm	28 mm	3000 mm	2.00 mm	2.5 kg
B 3-60E4	12 mm	28 mm	6000 mm	2.00 mm	5 kg
