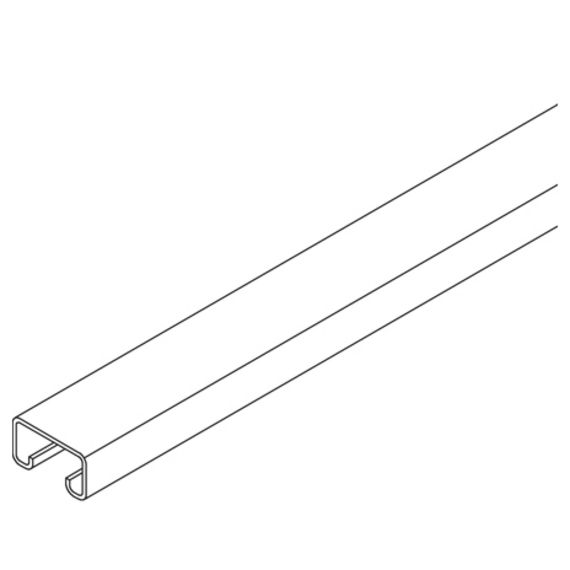

A 8 profile rail 40x22 mm, not perforated

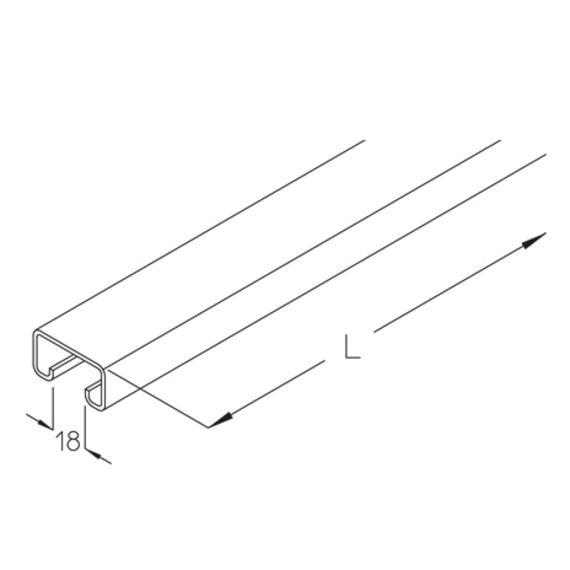

profile rail 40x22x2.00 mm, without perforation, slot size 18 mm

Bright rolled

	height	width	length	t material thickness	weight
A 8-30B	22 mm	40 mm	3000 mm	2.00 mm	4.6 kg
A 8-60B	22 mm	40 mm	6000 mm	2.00 mm	9.2 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	t material thickness	weight
A 8-30F	22 mm	40 mm	3000 mm	2.00 mm	5 kg
A 8-60F	22 mm	40 mm	6000 mm	2.00 mm	9.9 kg
