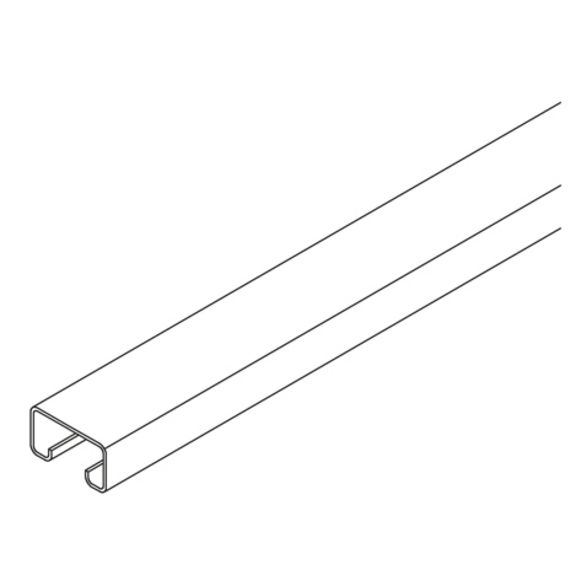

A 7 profile rail 39.5x22 mm, not perforated

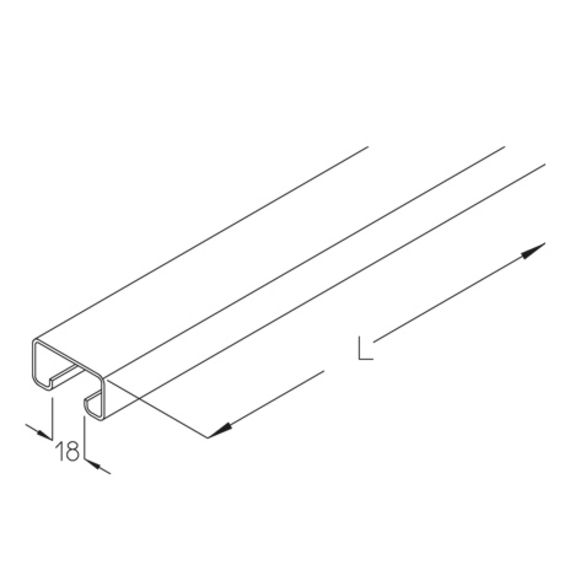

profile rail 39.5x22x1.50 mm, without perforation, slot size 18 mm

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

	height	width	length	t material thickness	weight
A 7-30S	22 mm	39.5 mm	3000 mm	1.50 mm	3.9 kg
A 7-60S	22 mm	39.5 mm	6000 mm	1.50 mm	7.8 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

	height	width	length	t material thickness	weight
A 7-30E	22 mm	39.5 mm	3000 mm	1.50 mm	3.6 kg
A 7-60E	22 mm	39.5 mm	6000 mm	1.50 mm	7.2 kg
