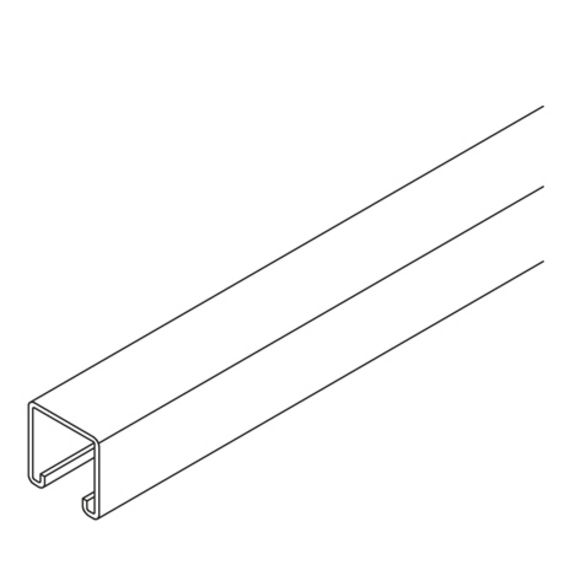

A 41 profile rail 41x41 mm, not perforated

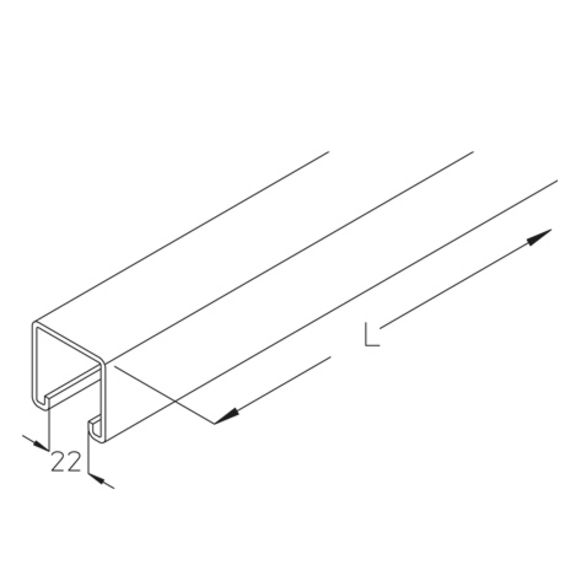

profile rail 41x41x2,50 mm, without perforation, slot size 22 mm

Bright rolled

	height	width	length	t material thickness	weight
A 41-30B	41 mm	41 mm	3000 mm	2.50 mm	8.2 kg
A 41-60B	41 mm	41 mm	6000 mm	2.50 mm	15.55 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	t material thickness	weight
A 41-30F	41 mm	41 mm	3000 mm	2.50 mm	8.3 kg
A 41-60F	41 mm	41 mm	6000 mm	2.50 mm	16.63 kg
