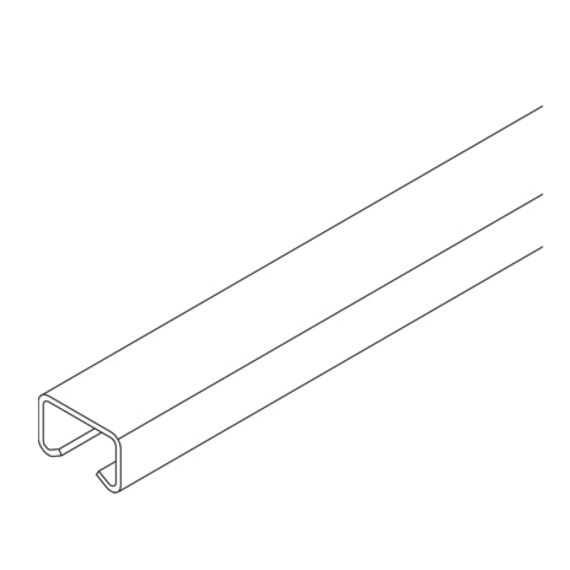

A 2 profile rail 30x15 mm, not perforated

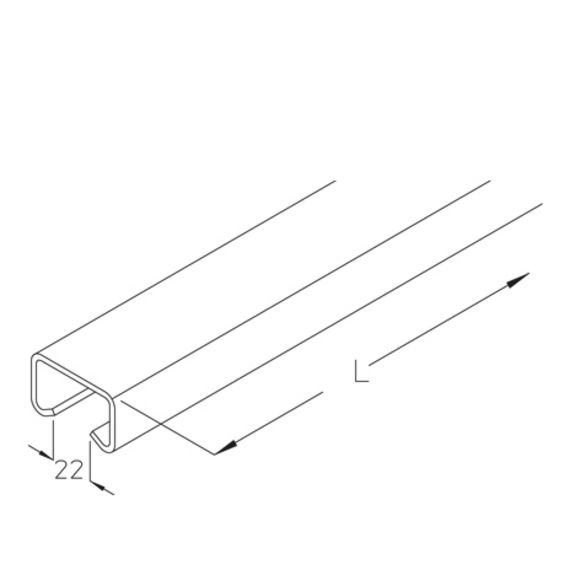

profile rail 50x31x3.25 mm, without perforation, slot size 22 mm

Bright rolled

	height	width	length	t material thickness	weight
A 2-30B	31 mm	50 mm	3000 mm	3.25 mm	8.8 kg
A 2-60B	31 mm	50 mm	6000 mm	3.25 mm	17.6 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	t material thickness	weight
A 2-30F	31 mm	50 mm	3000 mm	3.25 mm	9.4 kg
A 2-60F	31 mm	50 mm	6000 mm	3.25 mm	18.8 kg
