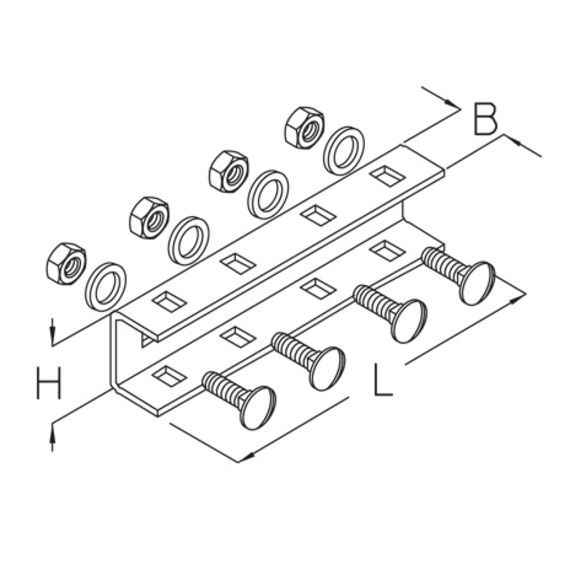

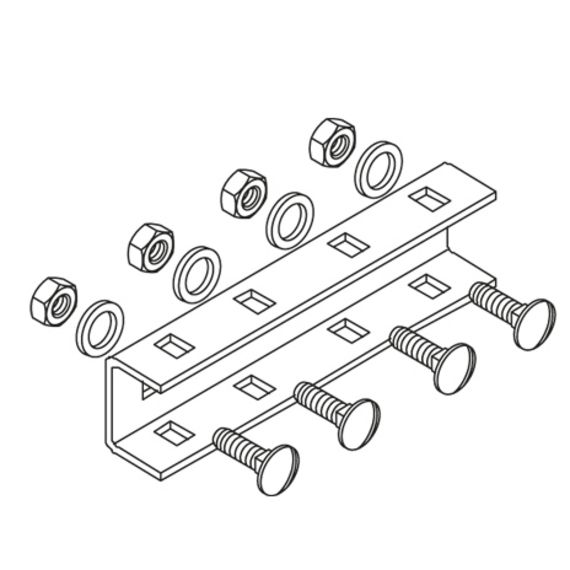

KHUV 57 connector, KHU 57

galvanized, according to DIN EN ISO 19598 / DIN EN ISO 2081

	height	width	length	t material thickness	weight
KHUV 57GV	63 mm	32.5 mm	210 mm	2.50 mm	0.59 kg

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

	height	width	length	t material thickness	weight
KHUV 57S	63 mm	32.5 mm	210 mm	2.50 mm	0.60 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	t material thickness	weight
KHUV 57F	63 mm	32.5 mm	210 mm	2.50 mm	0.63 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

	height	width	length	t material thickness	weight
KHUV 57E	63 mm	32.5 mm	210 mm	2.50 mm	0.60 kg

Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11

	height	width	length	t material thickness	weight
KHUV 57E4	63 mm	32.5 mm	210 mm	2.50 mm	0.61 kg
