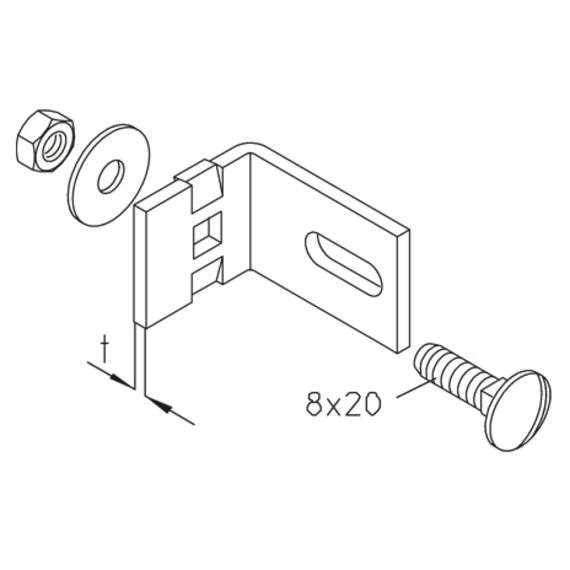

Wall angle for fastening bracket supports KHU 60 to walls.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| t material thickness | weight | ||
|---|---|---|---|
| BL 6S | 4.00 mm | 0.05 kg |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| t material thickness | weight | ||
|---|---|---|---|
| BL 6F | 4.00 mm | 0.05 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| t material thickness | weight | ||
|---|---|---|---|
| BL 6E | 3.00 mm | 0.05 kg |
