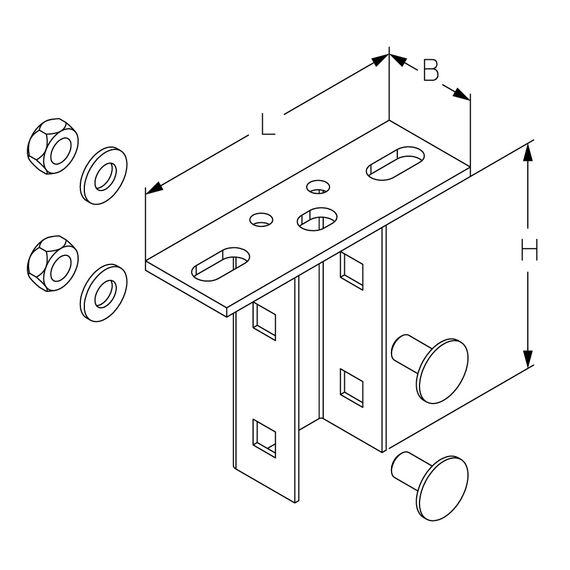

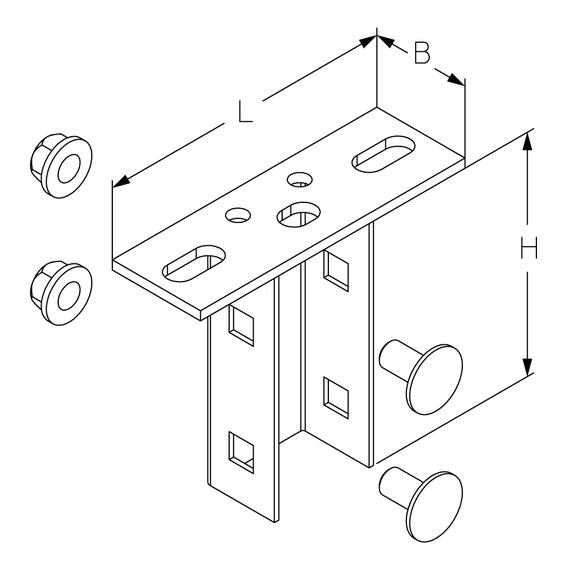

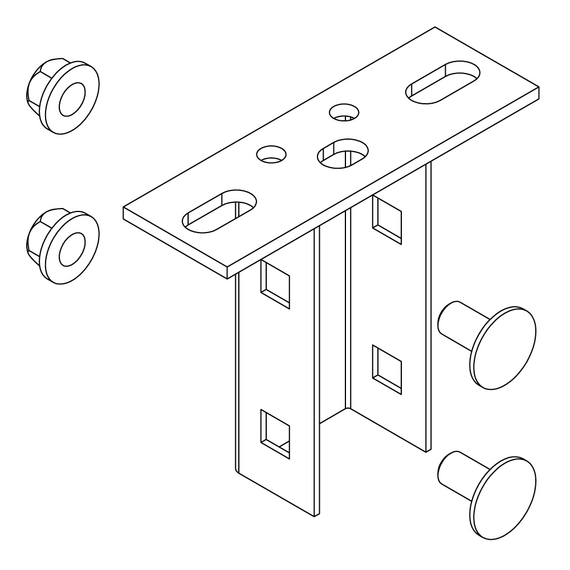

BGU 40 screwed head plate, KHU 40

Head plate for ceiling mounting of KHU 40 bracket support KHU 40

galvanized, according to DIN EN ISO 19598 / DIN EN ISO 2081

	height	width	length	t material thickness	weight
BGU 40GV	100 mm	40 mm	120 mm	4.00 mm	0.34 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	t material thickness	weight
BGU 40F	100 mm	40 mm	120 mm	4.00 mm	0.37 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

	height	width	length	t material thickness	weight
BGU 40E	100 mm	40 mm	120 mm	4.00 mm	0.35 kg

Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11

	height	width	length	t material thickness	weight
BGU 40E4	100 mm	40 mm	120 mm	4.00 mm	0.35 kg
