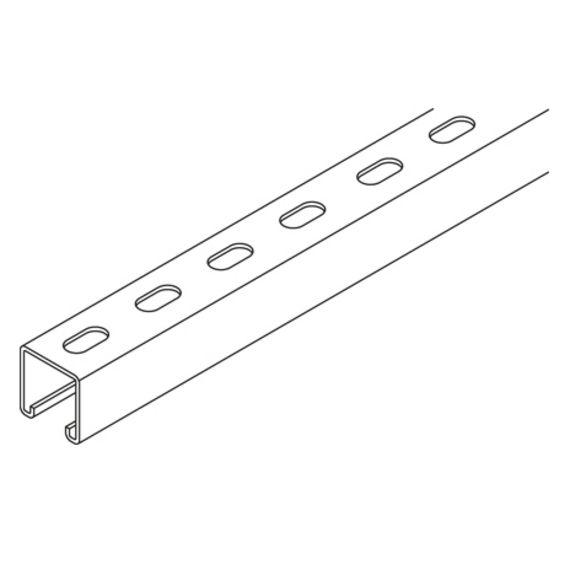

KHA 41 profile rail 41x41 mm, perforated

Downloads

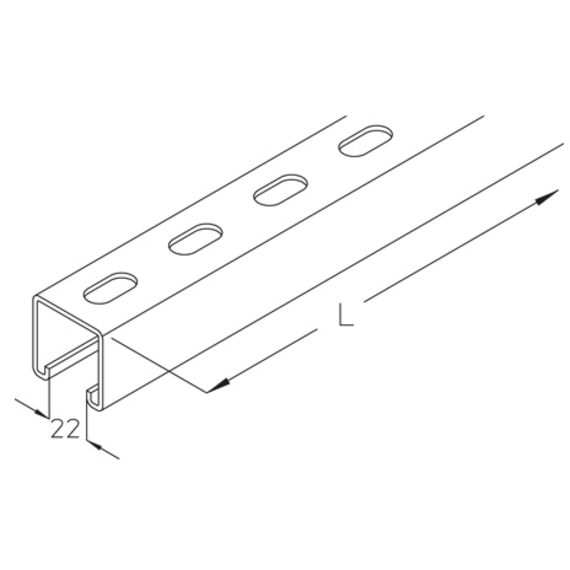

profile rail 41x41x2.50 mm, with continuous perforation 14x30, slot size 22 mm

This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	t material thickness	weight
KHA 41-01F	41 mm	41 mm	100 mm	2.50 mm	0.25 kg
KHA 41-02F	41 mm	41 mm	200 mm	2.50 mm	0.5 kg
KHA 41-03F	41 mm	41 mm	300 mm	2.50 mm	0.7 kg
KHA 41-04F	41 mm	41 mm	400 mm	2.50 mm	1.0 kg
KHA 41-05F	41 mm	41 mm	500 mm	2.50 mm	1.3 kg
KHA 41-06F	41 mm	41 mm	600 mm	2.50 mm	1.6 kg
KHA 41-07F	41 mm	41 mm	700 mm	2.50 mm	1.8 kg
KHA 41-08F	41 mm	41 mm	800 mm	2.50 mm	2.1 kg
KHA 41-09F	41 mm	41 mm	900 mm	2.50 mm	2.4 kg
KHA 41-10F	41 mm	41 mm	1000 mm	2.50 mm	2.6 kg
KHA 41-11F	41 mm	41 mm	1100 mm	2.50 mm	2.9 kg
KHA 41-12F	41 mm	41 mm	1200 mm	2.50 mm	3.2 kg
KHA 41-13F	41 mm	41 mm	1300 mm	2.50 mm	3.4 kg
KHA 41-14F	41 mm	41 mm	1400 mm	2.50 mm	3.7 kg
KHA 41-15F	41 mm	41 mm	1500 mm	2.50 mm	4 kg
KHA 41-20F	41 mm	41 mm	2000 mm	2.50 mm	5.2 kg
KHA 41-30F	41 mm	41 mm	3000 mm	2.50 mm	7.8 kg
KHA 41-60F	41 mm	41 mm	6000 mm	2.50 mm	15.6 kg
