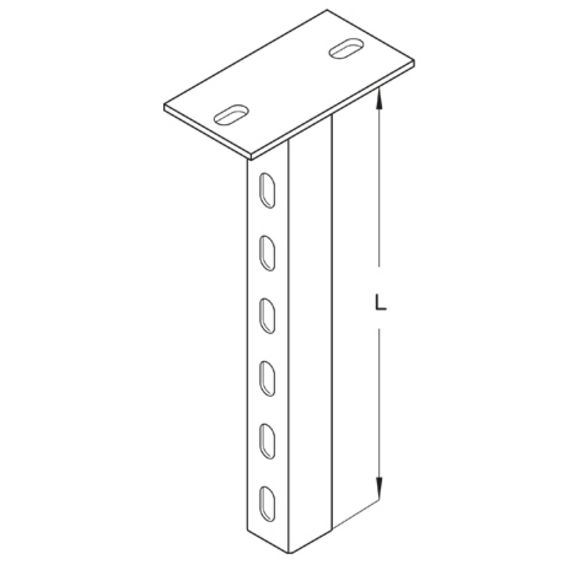

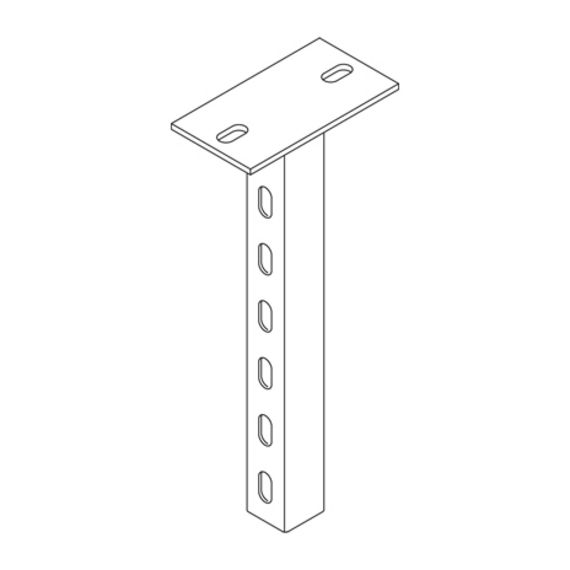

The bracket holder KDAG 41 with welded-on head plate consists of a C+ profile 41 x 41 mm with continuous perforation and a slot 22 mm wide. It is made of hot-dip galvanised steel and is available in lengths of up to 1000 mm. (Profile material thickness = 2.5 mm; head plate = 6 mm) FD/P: factor for calculating the dowel load FD with the actual bracket load P or the sum of the actual bracket loads.
