KA 41 handle bracket, standard, KDAG 41, A/KHA 21/41/42/82

Downloads

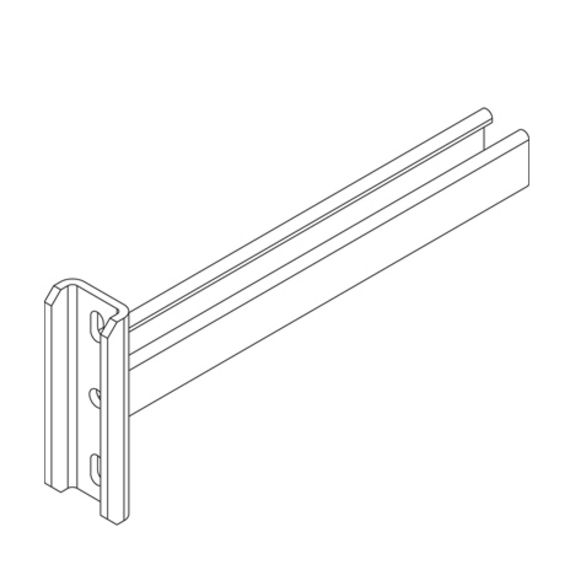

Handle bracket as standard version for KDAG 41, A/KHA 21/41/42/82.

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

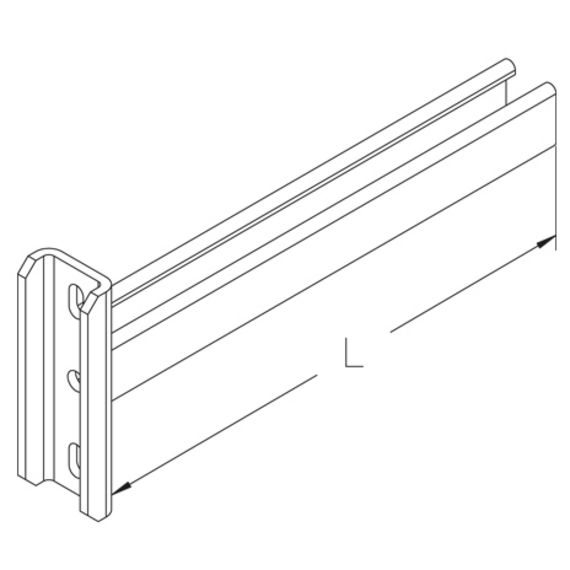

	width	length	P_maxMaximum load	weight
KA 41-010F	100 mm	125 mm	4.3 kN	1 kg
KA 41-015F	150 mm	175 mm	4.3 kN	1.1 kg
KA 41-020F	200 mm	225 mm	4.3 kN	1.2 kg
KA 41-025F	250 mm	275 mm	4.3 kN	1.4 kg
KA 41-030F	300 mm	325 mm	4.3 kN	1.5 kg
KA 41-040F	400 mm	425 mm	4.3 kN	1.6 kg
KA 41-050F	500 mm	525 mm	4.3 kN	1.8 kg
KA 41-060F	600 mm	625 mm	4.3 kN	1.9 kg
