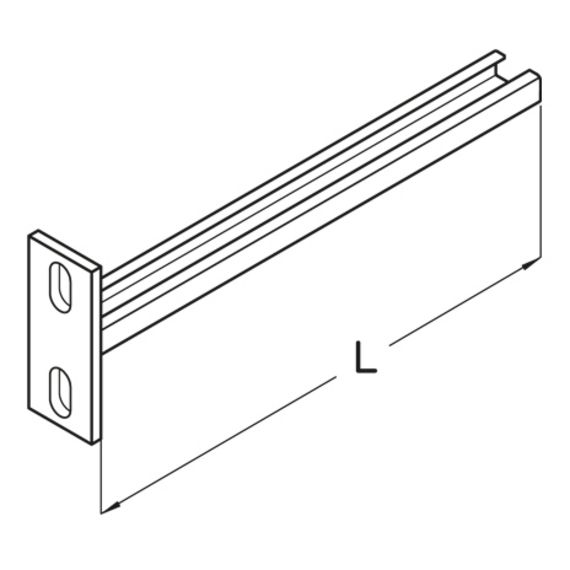

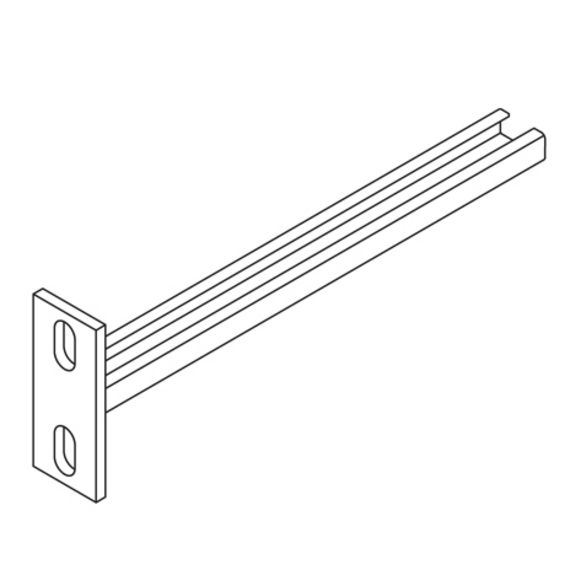

bracket, light duty, for ceiling bracket support profile 41
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| width | length | PmaxMaximum load | weight | ||
|---|---|---|---|---|---|
| KA 30-010F | 100 mm | 125 mm | 0.5 kN | 0.2 kg | |
| KA 30-015F | 150 mm | 175 mm | 0.5 kN | 0.3 kg | |
| KA 30-020F | 200 mm | 225 mm | 0.5 kN | 0.3 kg | |
| KA 30-025F | 250 mm | 275 mm | 0.5 kN | 0.4 kg | |
| KA 30-030F | 300 mm | 325 mm | 0.5 kN | 0.4 kg | |
| KA 30-040F | 400 mm | 425 mm | 0.5 kN | 0.5 kg |
