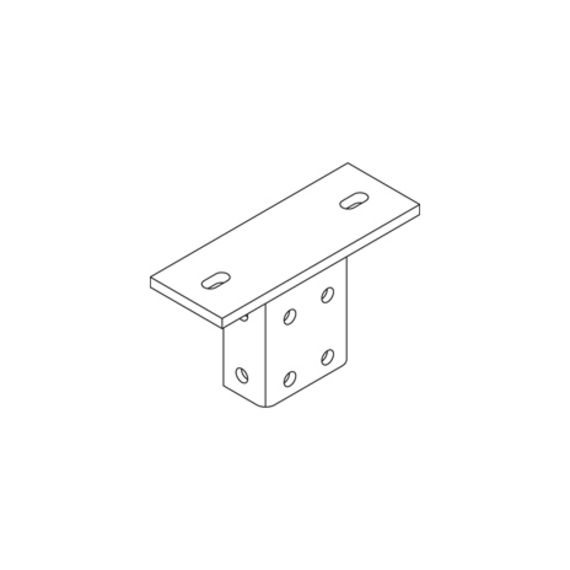

head plate for mounting of two bracket supports profile KHA 41 to ceiling
galvanized, according to DIN EN ISO 19598 / DIN EN ISO 2081

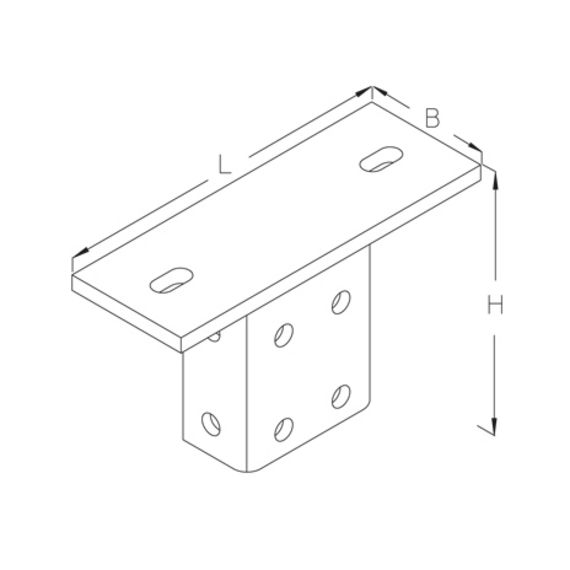

| height | width | length | weight | ||
|---|---|---|---|---|---|
| BGA 41/2GV | 120 mm | 80 mm | 220 mm | 1.99 kg |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| height | width | length | weight | ||
|---|---|---|---|---|---|
| BGA 41/2F | 120 mm | 80 mm | 220 mm | 1.8 kg |
