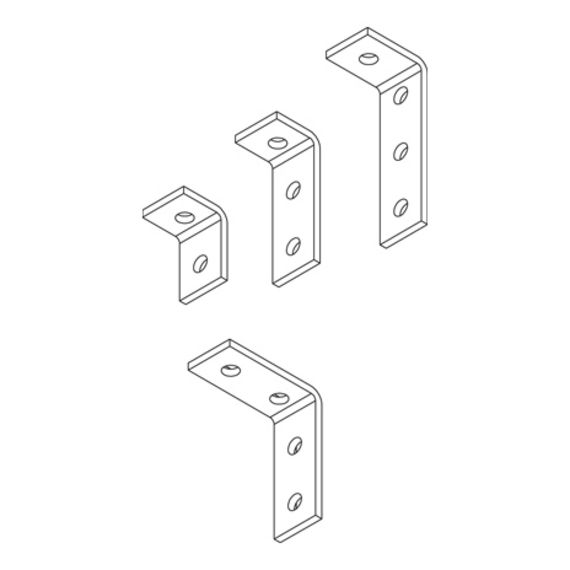

corner connector 90 ° 1-1, 1-2, 1-3 or 2-2 hole
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

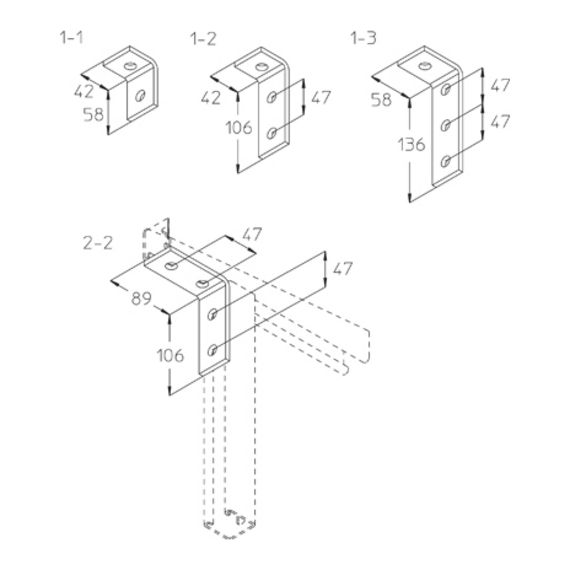

| height | width | length | t material thickness | weight | ||
|---|---|---|---|---|---|---|
| AVLW 1-1F | 40 mm | 42 mm | 58 mm | 6.00 mm | 0.17 kg | |
| AVLW 1-2F | 40 mm | 42 mm | 106 mm | 6.00 mm | 0.26 kg | |
| AVLW 1-3F | 40 mm | 58 mm | 136 mm | 6.00 mm | 0.36 kg | |
| AVLW 2-2F | 40 mm | 89 mm | 106 mm | 6.00 mm | 0.30 kg |
