Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

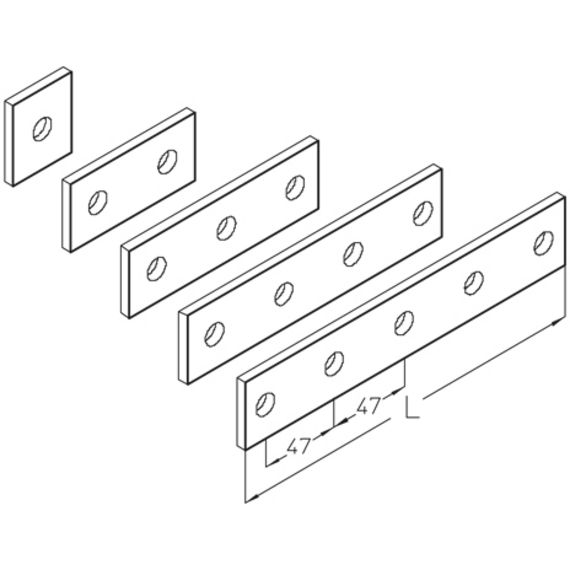

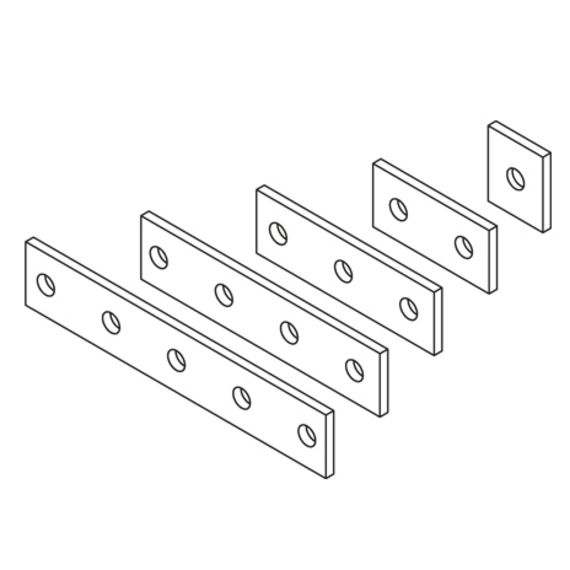

| width | length | t material thickness | weight | ||
|---|---|---|---|---|---|
| AVL-1F | 40 mm | 42 mm | 6.00 mm | 0.08 kg | |
| AVL-2F | 40 mm | 89 mm | 6.00 mm | 0.17 kg | |
| AVL-3F | 40 mm | 136 mm | 6.00 mm | 0.25 kg | |
| AVL-4F | 40 mm | 183 mm | 6.00 mm | 0.34 kg | |
| AVL-5F | 40 mm | 230 mm | 6.00 mm | 0.43 kg |
