Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

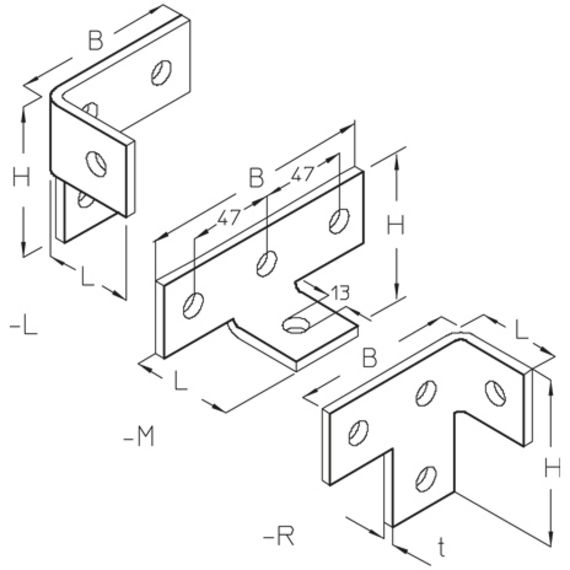

| height | width | length | t material thickness | weight | ||
|---|---|---|---|---|---|---|
| AVAW-L F | 90 mm | 98 mm | 48 mm | 6.00 mm | 0.36 kg | |
| AVAW-M F | 51 mm | 136 mm | 52 mm | 6.00 mm | 0.36 kg | |
| AVAW-R F | 90 mm | 98 mm | 48 mm | 6.00 mm | 0.36 kg |
| height | width | length | t material thickness | weight | ||
|---|---|---|---|---|---|---|
| AVAW-L F | 90 mm | 98 mm | 48 mm | 6.00 mm | 0.36 kg | |
| AVAW-M F | 51 mm | 136 mm | 52 mm | 6.00 mm | 0.36 kg | |
| AVAW-R F | 90 mm | 98 mm | 48 mm | 6.00 mm | 0.36 kg |
