GBAR centre suspension, external

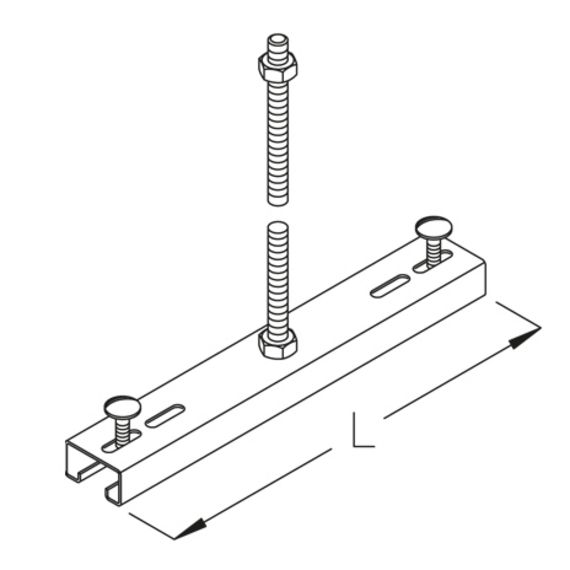

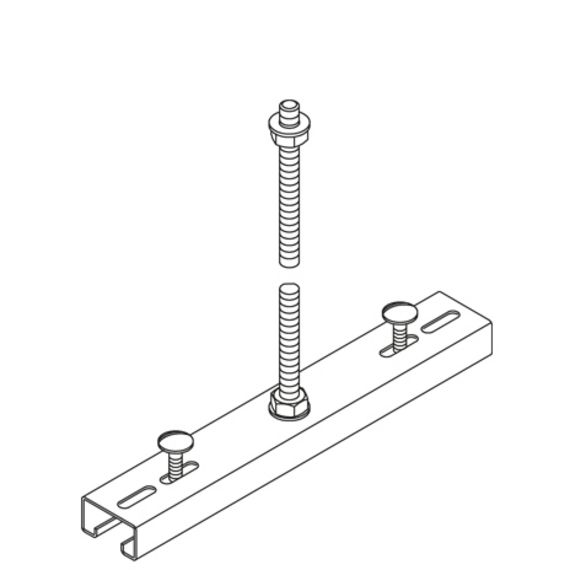

External centre suspension with threaded rod for cable trays. For tray widths of up to 300 mm. A threaded rod (L = 1000 mm) is included in the set.

F_D/P: coefficient for calculation of the dowel load F_D with effective bracket load P respectively the sum of effective bracket loads.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

	width	length	P_maxMaximum load	F_D/P dowel-to-anchor load	weight
GBAR 10S	100 mm	60 mm	0.7 kN	1	0.62 kg
GBAR 20S	200 mm	160 mm	0.7 kN	1	0.75 kg
GBAR 30S	300 mm	260 mm	0.7 kN	1	0.88 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

	width	length	P_maxMaximum load	F_D/P dowel-to-anchor load	weight
GBAR 10E	100 mm	60 mm	0.7 kN	1	0.62 kg
GBAR 20E	200 mm	160 mm	0.7 kN	1	0.75 kg
GBAR 30E	300 mm	260 mm	0.7 kN	1	0.88 kg
