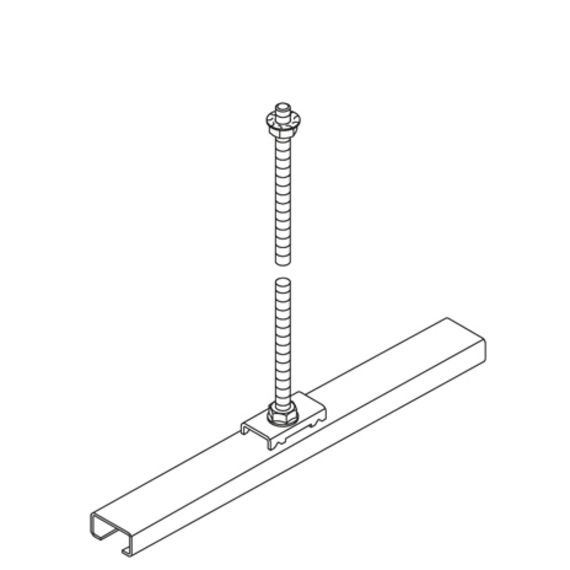

External centre suspension with threaded rod for mesh cable trays. For tray widths of up to 300 mm. A threaded rod (L = 1000 mm) is included in the set.
FD/P: coefficient for calculation of the dowel load FD with effective bracket load P respectively the sum of effective bracket loads.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

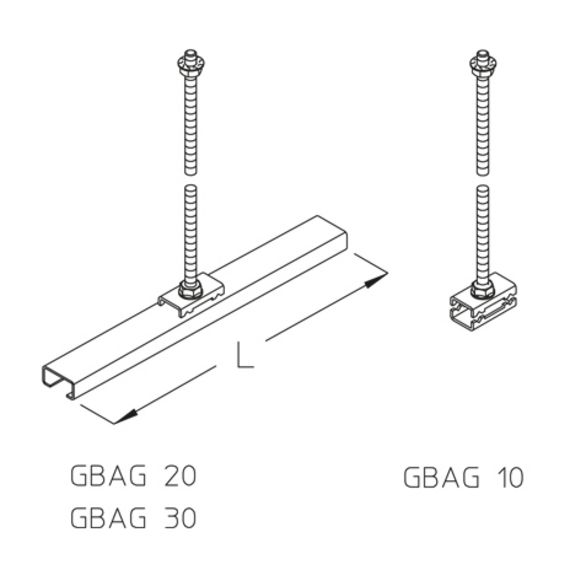

| width | length | PmaxMaximum load | FD/P dowel-to-anchor load | weight | ||
|---|---|---|---|---|---|---|
| GBAG 10S | 100 mm | 41 mm | 0.5 kN | 1 | 0.42 kg | |
| GBAG 20S | 200 mm | 180 mm | 0.5 kN | 1 | 0.5 kg | |
| GBAG 30S | 300 mm | 280 mm | 0.5 kN | 1 | 0.57 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| width | length | PmaxMaximum load | FD/P dowel-to-anchor load | weight | ||
|---|---|---|---|---|---|---|
| GBAG 10E | 100 mm | 41 mm | 0.5 kN | 1 | 0.42 kg | |
| GBAG 20E | 200 mm | 180 mm | 0.5 kN | 1 | 0.5 kg | |
| GBAG 30E | 300 mm | 280 mm | 0.5 kN | 1 | 0.57 kg |
