DKSL ceiling fixed bracket, light-duty

Downloads

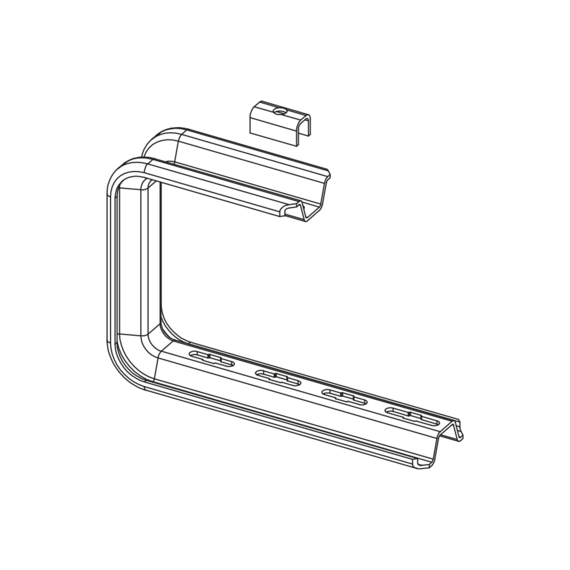

Ceiling bracket, light version made of W-/trapezoidal profile 60x20x2.5 mm, perforated in the center, suspension length 170 mm.

F_D/P: coefficient for calculation of the dowel load F_D with effective bracket load P respectively the sum of effective bracket loads. Load specifications only apply for mounting as ceiling bracket. The spacer KSL-SP must be fitted when installing the ceiling to prevent deformation of the profile due to frictional locking of the fastening screw.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

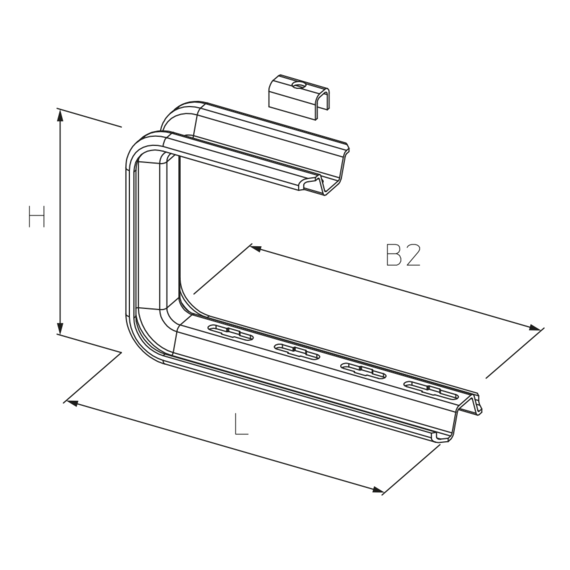

	height	width	width	length	P_maxMaximum load	F_D/P dowel-to-anchor load	weight
DKSL 010S	170 mm	100 mm	120 mm	140 mm	1,28 kN	3.1	0.62 kg
DKSL 020S	170 mm	200 mm	220 mm	240 mm	0,93 kN	2.1	0.79 kg
DKSL 030S	170 mm	300 mm	320 mm	340 mm	0,86 kN	2.7	0.94 kg
DKSL 040S	170 mm	400 mm	420 mm	440 mm	0,61 kN	3.3	1.11 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	width	length	P_maxMaximum load	F_D/P dowel-to-anchor load	weight
DKSL 010F	170 mm	100 mm	120 mm	140 mm	1,56 kN	3.1	0.86 kg
DKSL 020F	170 mm	200 mm	220 mm	240 mm	1,09 kN	2.1	0.84 kg
DKSL 030F	170 mm	300 mm	320 mm	340 mm	0,99 kN	2.7	1.00 kg
DKSL 040F	170 mm	400 mm	420 mm	440 mm	0,69 kN	3.3	1.18 kg
