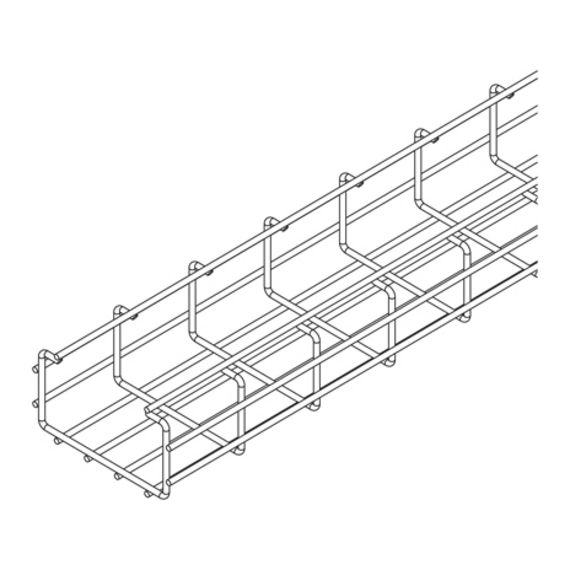

GI mesh cable tray, C-shape, height = 75 mm

Mesh cable tray, C-shape, heavy-duty, certified including electrical conductivity according to DIN EN 61537/VDE 0639.

Do not walk upon!

galvanized, according to DIN EN ISO 19598 / DIN EN ISO 2081

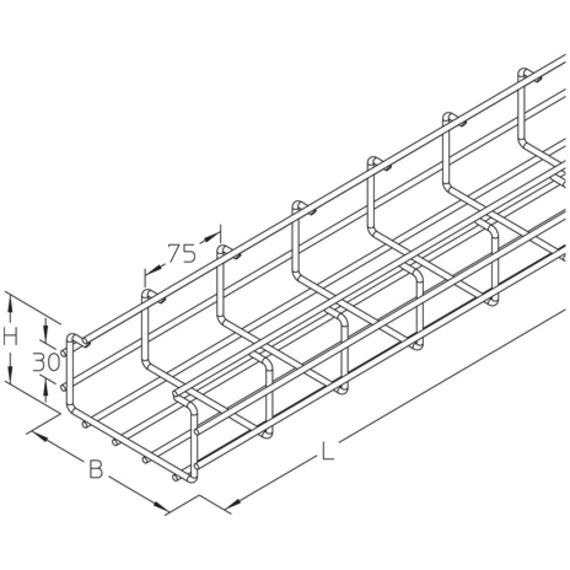

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	weight
GI 06GV	75 mm	76 mm	3000 mm	4.50 mm	33 cm²	0.05 kN/m	4.10 kg
GI 12GV	75 mm	136 mm	3000 mm	4.50 mm	67 cm²	0.10 kN/m	5.16 kg
GI 20GV	75 mm	216 mm	3000 mm	4.50 mm	113 cm²	0.17 kN/m	5.57 kg
GI 30GV	75 mm	316 mm	3000 mm	4.50 mm	165 cm²	0.25 kN/m	6.83 kg

Pre-galvanised (DIN EN 10244-2)

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	weight
GI 06S	75 mm	76 mm	3000 mm	4.50 mm	33 cm²	0.05 kN/m	4.10 kg
GI 12S	75 mm	136 mm	3000 mm	4.50 mm	67 cm²	0.10 kN/m	5.16 kg
GI 20S	75 mm	216 mm	3000 mm	4.50 mm	113 cm²	0.17 kN/m	5.57 kg
GI 30S	75 mm	316 mm	3000 mm	4.50 mm	165 cm²	0.25 kN/m	6.83 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	weight
GI 06F	75 mm	76 mm	3000 mm	4.50 mm	33 cm²	0.05 kN/m	4.39 kg
GI 12F	75 mm	136 mm	3000 mm	4.50 mm	67 cm²	0.10 kN/m	5.52 kg
GI 20F	75 mm	216 mm	3000 mm	4.50 mm	113 cm²	0.17 kN/m	5.96 kg
GI 30F	75 mm	316 mm	3000 mm	4.50 mm	165 cm²	0.25 kN/m	7.31 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	weight
GI 06E	75 mm	76 mm	3000 mm	4.50 mm	33 cm²	0.05 kN/m	4.12 kg
GI 12E	75 mm	136 mm	3000 mm	4.50 mm	67 cm²	0.10 kN/m	5.19 kg
GI 20E	75 mm	216 mm	3000 mm	4.50 mm	113 cm²	0.17 kN/m	5.60 kg
GI 30E	75 mm	316 mm	3000 mm	4.50 mm	165 cm²	0.25 kN/m	6.87 kg

Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	weight
GI 06E4	75 mm	76 mm	3000 mm	4.50 mm	33 cm²	0.05 kN/m	4.18 kg
GI 12E4	75 mm	136 mm	3000 mm	4.50 mm	67 cm²	0.10 kN/m	5.25 kg
GI 20E4	75 mm	216 mm	3000 mm	4.50 mm	113 cm²	0.17 kN/m	5.67 kg
GI 30E4	75 mm	316 mm	3000 mm	4.50 mm	165 cm²	0.25 kN/m	7.01 kg
