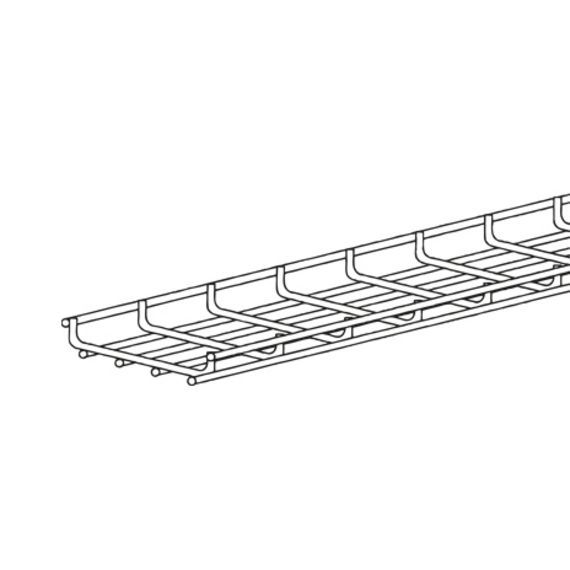

G 30 mesh cable tray

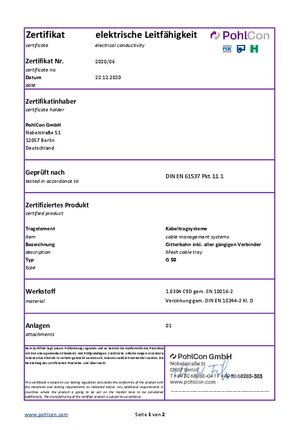

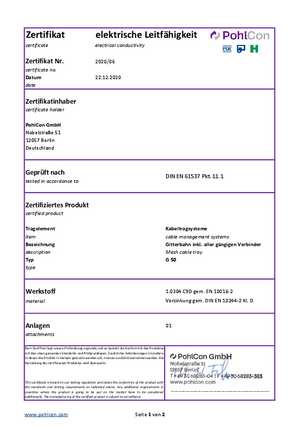

Mesh cable tray, U-shape, certified including electrical conductivity according to DIN EN 61537/VDE 0639.

This item is available in stainless steel AISI 304.

Do not walk upon!

Continously hot galvanized (Sendzimir process) (DIN EN 10346), plastic-coated

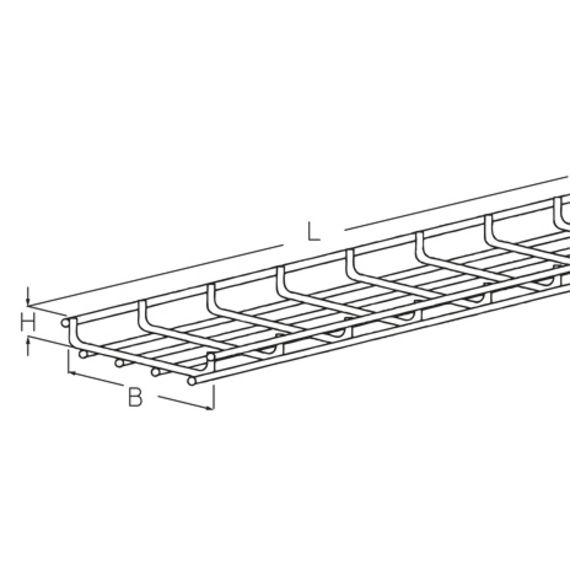

	height	width	length	t material thickness	weight
G 30-10ZP	30 mm	100 mm	3000 mm	4.40 mm	1.98 kg
G 30-20ZP	30 mm	200 mm	3000 mm	4.40 mm	3.06 kg
G 30-30ZP	30 mm	300 mm	3000 mm	4.40 mm	4.14 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	t material thickness	weight
G 30-10F	30 mm	100 mm	3000 mm	4.40 mm	2.10 kg
G 30-20F	30 mm	200 mm	3000 mm	4.40 mm	3.20 kg
G 30-30F	30 mm	300 mm	3000 mm	4.40 mm	4.35 kg

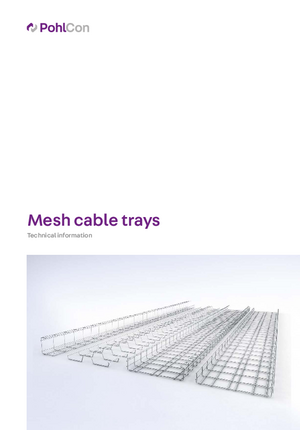

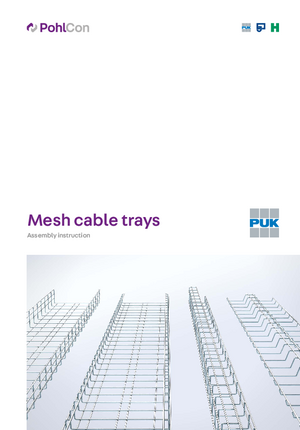

Downloads
