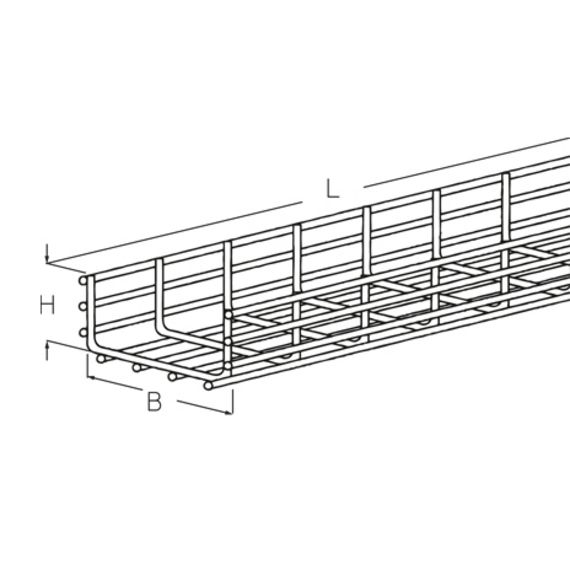

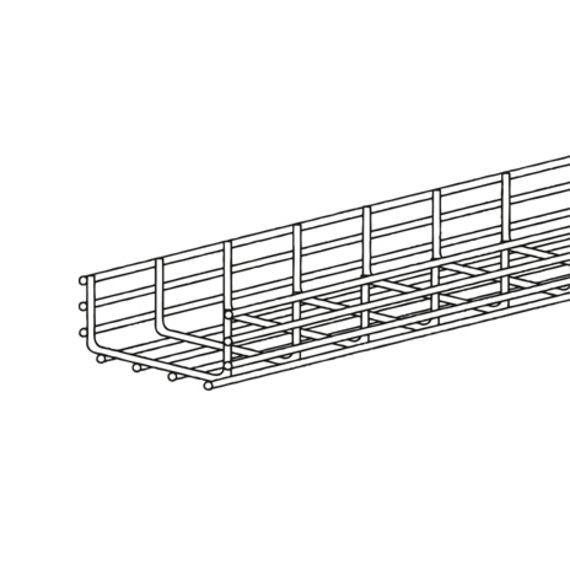

G 100 mesh cable tray

Mesh cable tray, U-shape, certified including electrical conductivity according to DIN EN 61537/VDE 0639.

This item is available in stainless steel AISI 304.

Do not walk upon!

Continously hot galvanized (Sendzimir process) (DIN EN 10346), plastic-coated

	height	width	length	t material thickness	weight
GE 100-20ZP	100 mm	200 mm	3000 mm	4.90 mm	6.21 kg
GE 100-30ZP	100 mm	300 mm	3000 mm	4.90 mm	7.65 kg
GE 100-40ZP	100 mm	400 mm	3000 mm	4.90 mm	8.46 kg
GE 100-50ZP	100 mm	500 mm	3000 mm	4.90 mm	10.49 kg
GE 100-60ZP	100 mm	600 mm	3000 mm	4.90 mm	11.70 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	t material thickness	weight
GE 100-20F	100 mm	200 mm	3000 mm	4.90 mm	6.90 kg
GE 100-30F	100 mm	300 mm	3000 mm	4.90 mm	8.10 kg
GE 100-40F	100 mm	400 mm	3000 mm	4.90 mm	9.00 kg
GE 100-50F	100 mm	500 mm	3000 mm	4.90 mm	11.70 kg
GE 100-60F	100 mm	600 mm	3000 mm	4.90 mm	13.50 kg

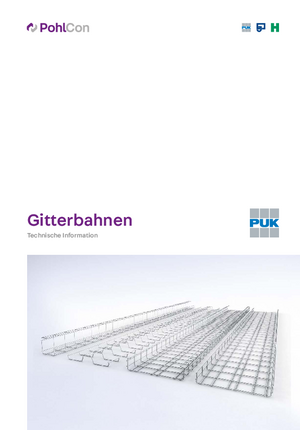

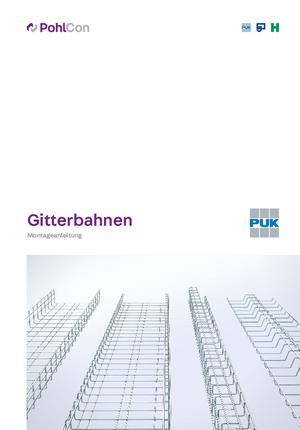

Downloads
