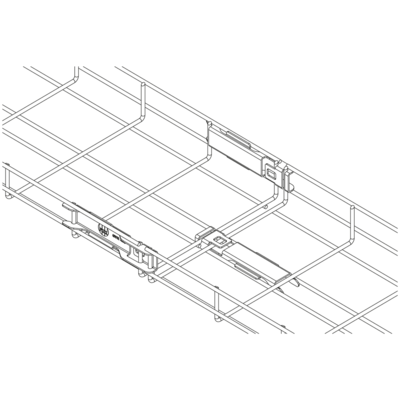

Usable on mesh cable trays with a wire spacing of 100 mm. Universal use of the snap connector for side or bottom connections. Screwless assembly/disassembly. Backlash-free versions for Ø4 mm and Ø4.5 mm wire thickness.
The mesh cable tray locking connector is suitable for mesh cable trays type G 50 for widths up to and including 300 mm and for type G 100 for widths up to and including 200 mm.
