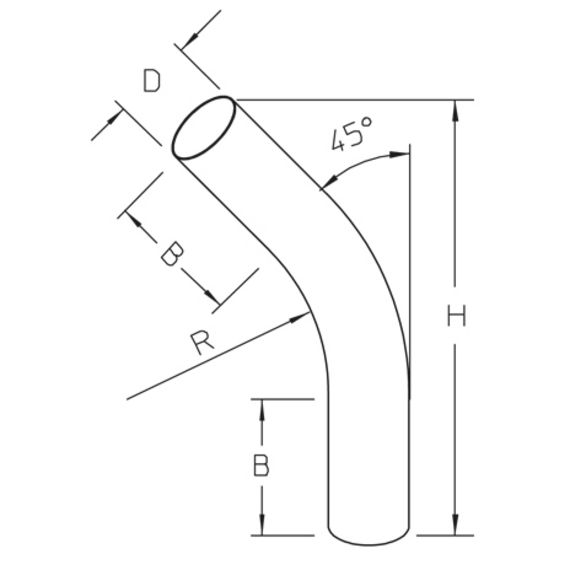

SRB 45 tube bow, 45°

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	diameter	radius	t material thickness	weight
SRB 45-30F	270 mm	100 mm	30 mm	140 mm	1.50 mm	0.3 kg
SRB 45-60F	350 mm	100 mm	60 mm	150 mm	2.00 mm	1.05 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

	height	width	diameter	radius	t material thickness	weight
SRB 45-30E	270 mm	100 mm	30 mm	140 mm	1.50 mm	0.3 kg
SRB 45-60E	350 mm	100 mm	60 mm	150 mm	2.00 mm	1.05 kg
