Continously hot galvanized (Sendzimir process) (DIN EN 10346)

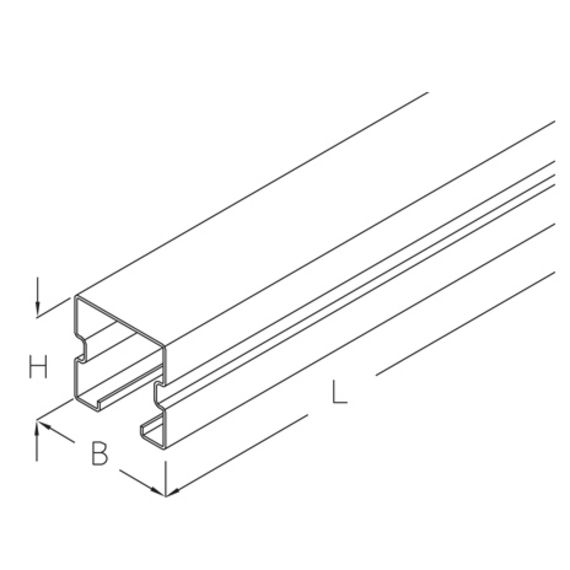

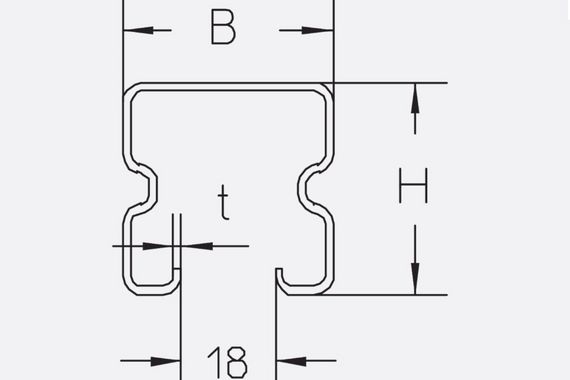

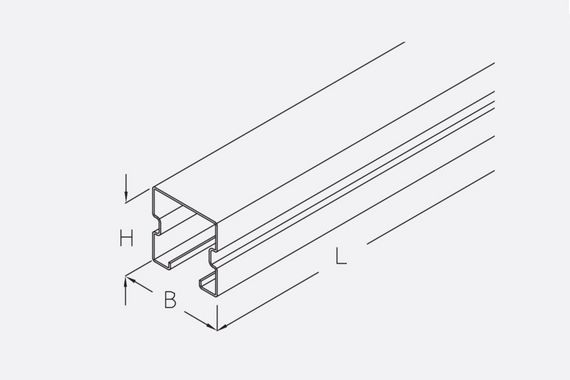

| height | width | length | t material thickness | weight | ||
|---|---|---|---|---|---|---|
| KPR 40-3 | 40 mm | 40 mm | 3000 mm | 1.50 mm | 5.4 kg | |
| KPR 40 | 40 mm | 40 mm | 6000 mm | 1.50 mm | 10.8 kg |
| height | width | length | t material thickness | weight | ||
|---|---|---|---|---|---|---|
| KPR 40-3 | 40 mm | 40 mm | 3000 mm | 1.50 mm | 5.4 kg | |
| KPR 40 | 40 mm | 40 mm | 6000 mm | 1.50 mm | 10.8 kg |
