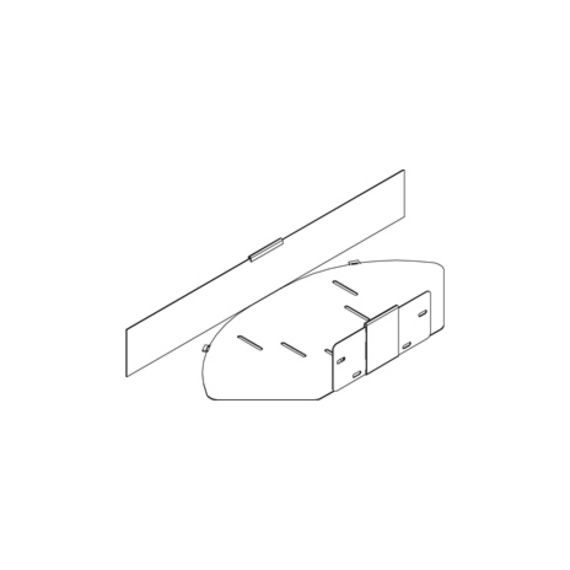

BKVB 110 floor duct bend, variable, height = 110 mm

From a width ≥ 300 mm, one separating strip must be installed. From a width of ≥ 500 mm, two separating strips must be installed.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

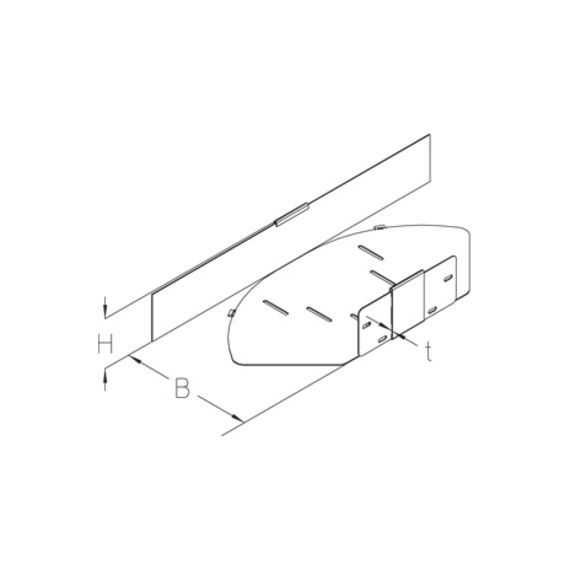

	height	width	t material thickness	weight
BKVB 110-10S	110 mm	100 mm	2.00 mm	1.50 kg
BKVB 110-15S	110 mm	150 mm	2.00 mm	1.96 kg
BKVB 110-20S	110 mm	200 mm	2.00 mm	2.47 kg
BKVB 110-30S	110 mm	300 mm	2.00 mm	3.63 kg
BKVB 110-40S	110 mm	400 mm	2.00 mm	5.05 kg
BKVB 110-50S	110 mm	500 mm	2.00 mm	6.71 kg
BKVB 110-60S	110 mm	600 mm	2.00 mm	8.60 kg
