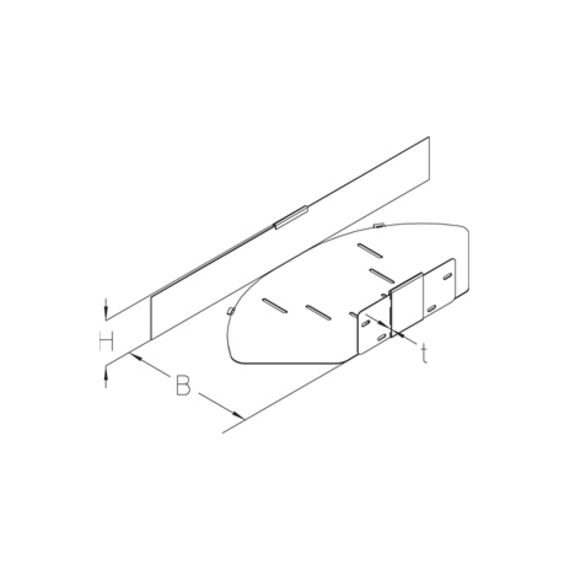

BKVB 100 floor duct bend, variable, height = 100 mm

From a width ≥ 300 mm, one separating strip must be installed. From a width of ≥ 500 mm, two separating strips must be installed.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

	height	width	t material thickness	weight
BKVB 100-10S	100 mm	100 mm	2.00 mm	1.41 kg
BKVB 100-15S	100 mm	150 mm	2.00 mm	1.86 kg
BKVB 100-20S	100 mm	200 mm	2.00 mm	2.37 kg
BKVB 100-30S	100 mm	300 mm	2.00 mm	3.51 kg
BKVB 100-40S	100 mm	400 mm	2.00 mm	4.91 kg
BKVB 100-50S	100 mm	500 mm	2.00 mm	6.55 kg
BKVB 100-60S	100 mm	600 mm	2.00 mm	8.42 kg
