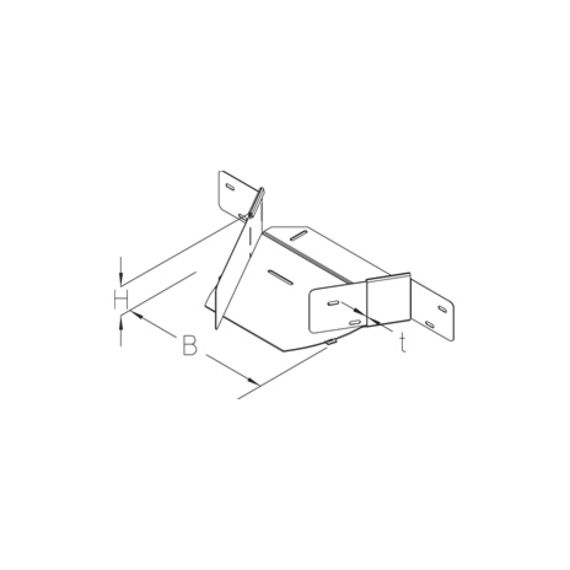

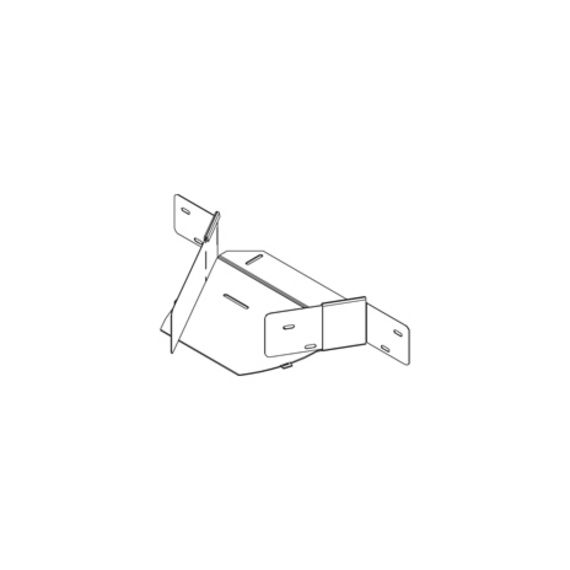

BKVAA 100 floor duct attachment branch, variable, height = 100 mm

From a width ≥ 300 mm, one separating strip must be installed. From a width of ≥ 500 mm, two separating strips must be installed.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

	height	width	t material thickness	weight
BKVAA 100-10S	100 mm	100 mm	2.00 mm	1.23 kg
BKVAA 100-15S	100 mm	150 mm	2.00 mm	1.45 kg
BKVAA 100-20S	100 mm	200 mm	2.00 mm	1.72 kg
BKVAA 100-30S	100 mm	300 mm	2.00 mm	2.31 kg
BKVAA 100-40S	100 mm	400 mm	2.00 mm	3.10 kg
BKVAA 100-50S	100 mm	500 mm	2.00 mm	4.06 kg
BKVAA 100-60S	100 mm	600 mm	2.00 mm	5.21 kg
