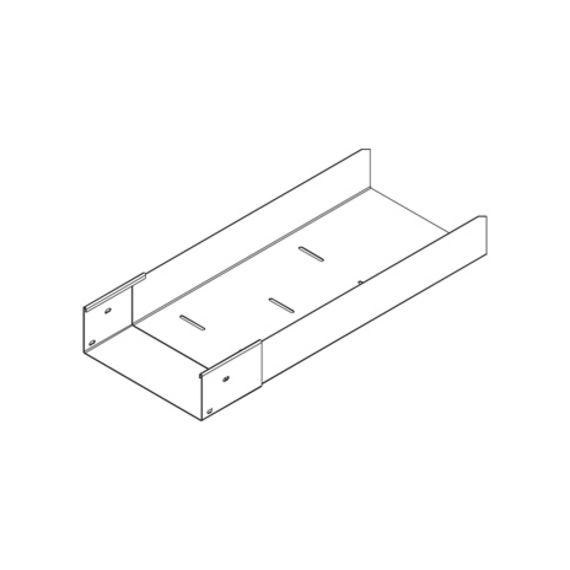

BKTE 100 floor duct telescope insert, height = 100 mm

The floor duct telescopic insert BKTE 100 ensures full flexibility during assembly. Its length can be continuously adjusted between 150 and 650 mm allowing two floor ducts to be variably connected without requiring any cutting work. The telescopic insert is pushed into the existing channel by at least 50 mm on one side. The perforated side of the telescopic insert can be bolted together with the BKV connectors. Subsequent changes can be made to the system with very little effort. The floor duct telescopic insert is available in sendzimir hot-dip galvanised steel. The sides are 100 mm high and it is 100 to 600 mm wide. The total length is 700 mm.
