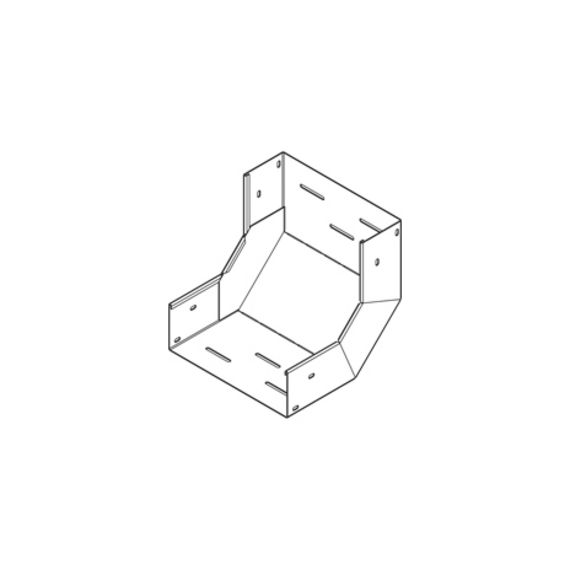

BKS 100 Floor duct riser bend, height = 100 mm

From a width ≥ 300 mm, one separating strip must be installed. From a width of ≥ 500 mm, two separating strips must be installed.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

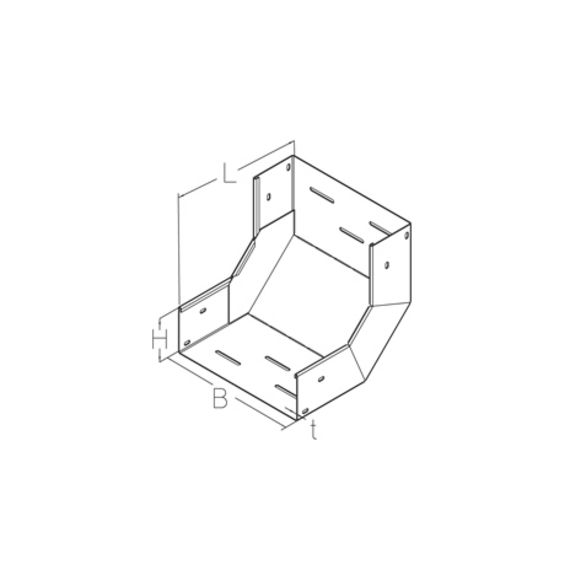

	height	width	length	t material thickness	weight
BKS 100-10S	100 mm	100 mm	290 mm	2.00 mm	4.11 kg
BKS 100-15S	100 mm	150 mm	290 mm	2.00 mm	4.51 kg
BKS 100-20S	100 mm	200 mm	290 mm	2.00 mm	4.87 kg
BKS 100-30S	100 mm	300 mm	290 mm	2.00 mm	5.67 kg
BKS 100-40S	100 mm	400 mm	290 mm	2.00 mm	6.43 kg
BKS 100-50S	100 mm	500 mm	290 mm	2.00 mm	7.18 kg
BKS 100-60S	100 mm	600 mm	290 mm	2.00 mm	7.98 kg
