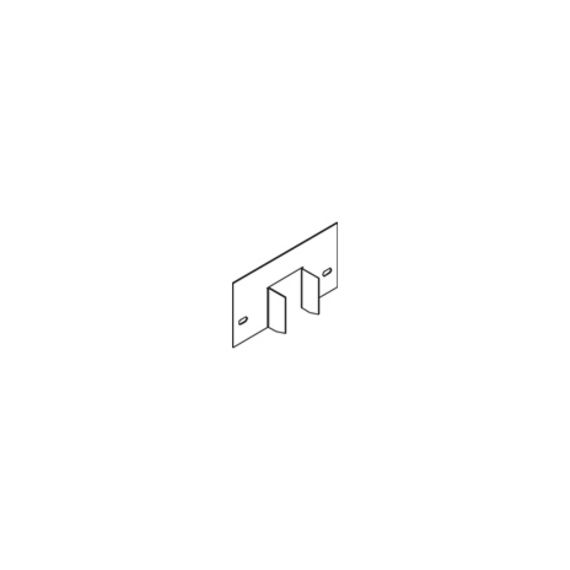

BKRKK 100 floor duct reducer, height = 95 mm

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

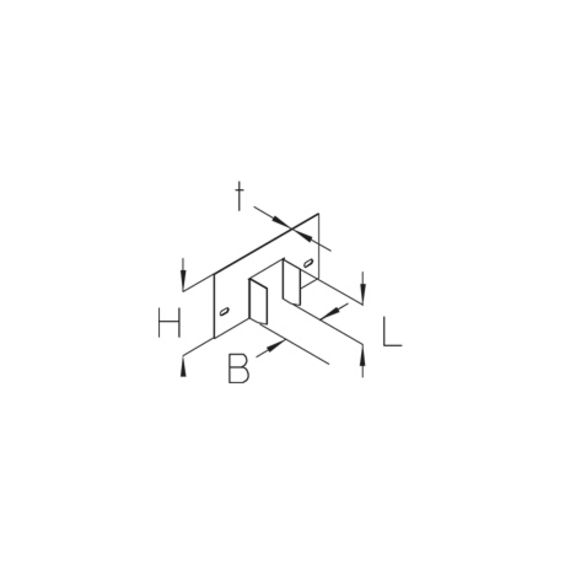

	height	width	length	t material thickness	weight
BKRKK 100-30-30S	95 mm	30 mm	30 mm	1.00 mm	0.14 kg
BKRKK 100-30-50S	95 mm	50 mm	30 mm	1.00 mm	0.14 kg
BKRKK 100-40-40S	95 mm	40 mm	40 mm	1.00 mm	0.14 kg
BKRKK 100-50-50S	95 mm	50 mm	50 mm	1.00 mm	0.15 kg
BKRKK 100-60-60S	95 mm	60 mm	60 mm	1.00 mm	0.15 kg
BKRKK 100-75-75S	95 mm	75 mm	75 mm	1.00 mm	0.15 kg
