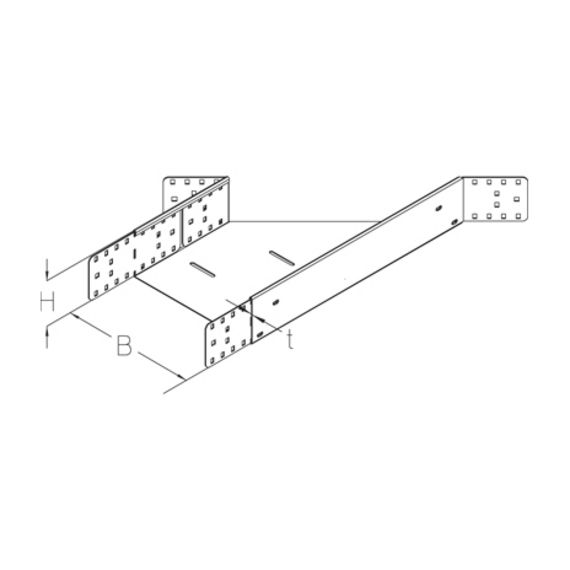

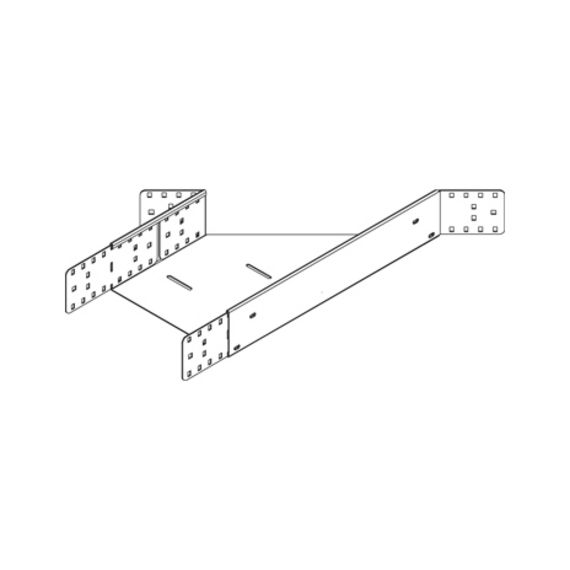

BKGL 100 floor duct with mitre cut, left, height = 100 mm

From a width ≥ 300 mm, one separating strip must be installed. From a width of ≥ 500 mm, two separating strips must be installed.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

	height	width	t material thickness	weight
BKGL 100-10S	100 mm	100 mm	2.00 mm	2.79 kg
BKGL 100-15S	100 mm	150 mm	2.00 mm	3.15 kg
BKGL 100-20S	100 mm	200 mm	2.00 mm	3.56 kg
BKGL 100-30S	100 mm	300 mm	2.00 mm	4.39 kg
BKGL 100-40S	100 mm	400 mm	2.00 mm	5.57 kg
BKGL 100-50S	100 mm	500 mm	2.00 mm	6.84 kg
BKGL 100-60S	100 mm	600 mm	2.00 mm	8.19 kg
