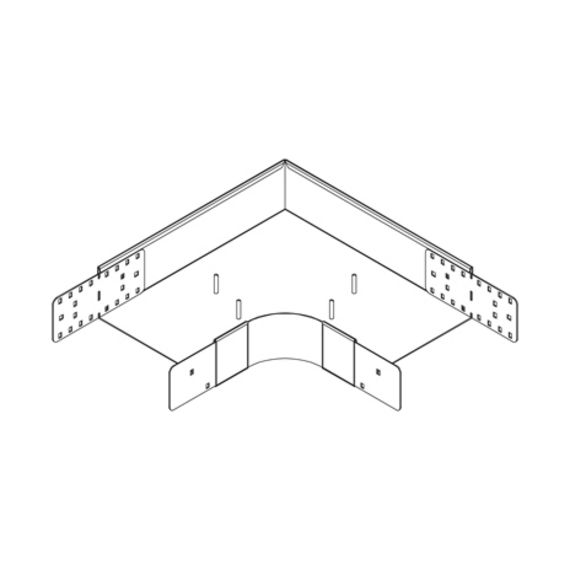

BKBR 110 floor duct bend with radius, height = 110 mm

From a width ≥ 300 mm, one separating strip must be installed. From a width of ≥ 500 mm, two separating strips must be installed.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

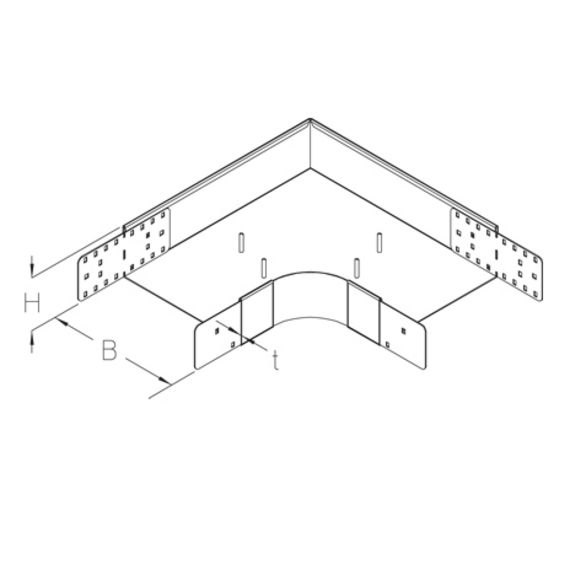

	height	width	t material thickness	weight
BKBR 110-10S	110 mm	100 mm	2.00 mm	3.87 kg
BKBR 110-15S	110 mm	150 mm	2.00 mm	4.52 kg
BKBR 110-20S	110 mm	200 mm	2.00 mm	5.25 kg
BKBR 110-30S	110 mm	300 mm	2.00 mm	6.94 kg
BKBR 110-40S	110 mm	400 mm	2.00 mm	8.96 kg
BKBR 110-50S	110 mm	500 mm	2.00 mm	11.28 kg
BKBR 110-60S	110 mm	600 mm	2.00 mm	13.92 kg
