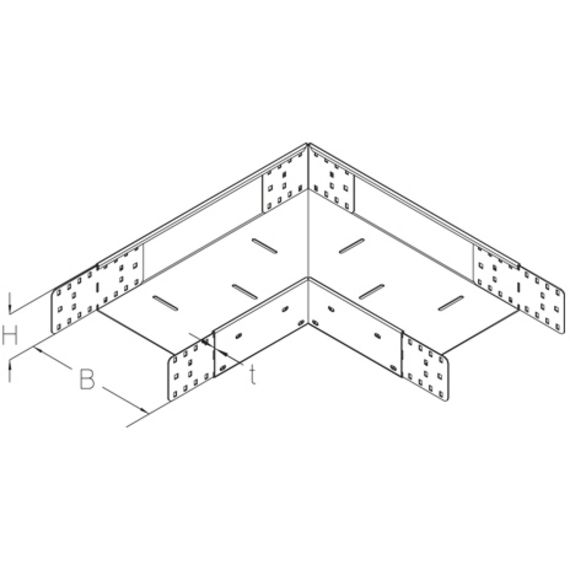

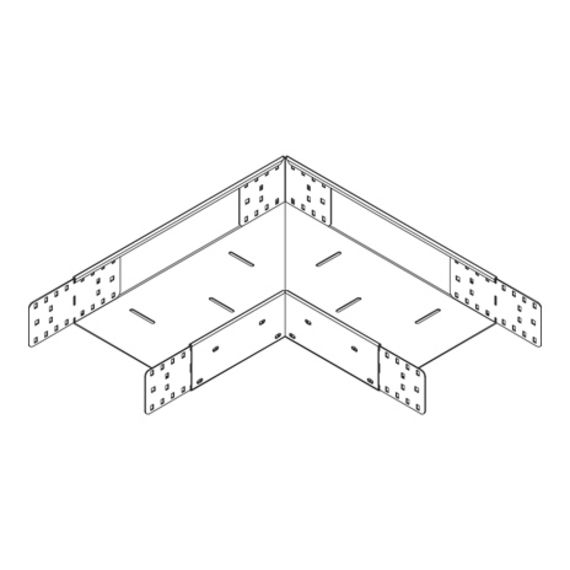

BKBG 100 floor duct bend with mitre cut, height = 100 mm

From a width ≥ 300 mm, one separating strip must be installed. From a width of ≥ 500 mm, two separating strips must be installed.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

	height	width	t material thickness	weight
BKBG 100-10S	100 mm	100 mm	2.00 mm	4.90 kg
BKBG 100-15S	100 mm	150 mm	2.00 mm	5.63 kg
BKBG 100-20S	100 mm	200 mm	2.00 mm	6.44 kg
BKBG 100-30S	100 mm	300 mm	2.00 mm	8.29 kg
BKBG 100-40S	100 mm	400 mm	2.00 mm	10.47 kg
BKBG 100-50S	100 mm	500 mm	2.00 mm	13.00 kg
BKBG 100-60S	100 mm	600 mm	2.00 mm	15.04 kg
