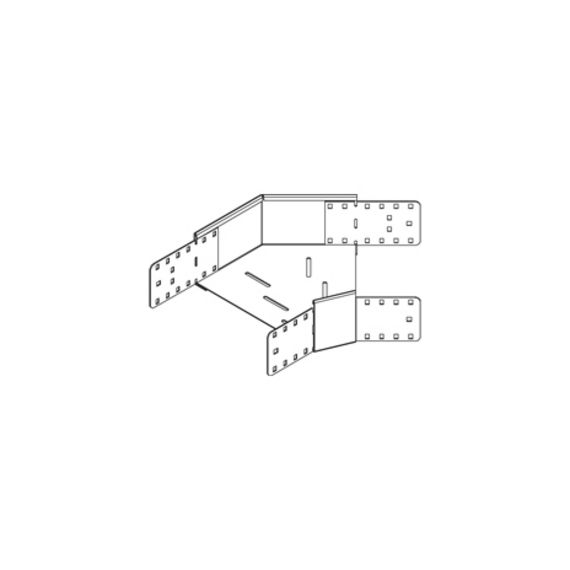

BKB45 110 floor duct bend, height = 110 mm

floor duct bend 45º for horizontal change of direction with integrated connectors

From a width ≥ 300 mm, one separating strip must be installed. From a width of ≥ 500 mm, two separating strips must be installed.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

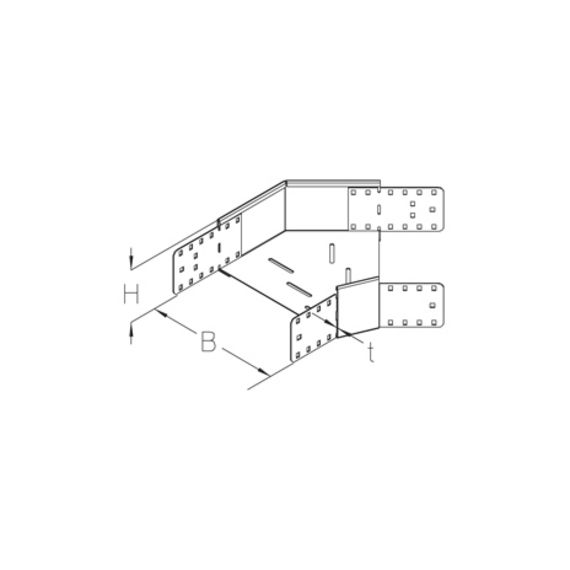

	height	width	t material thickness	weight
BKB45 110-10S	110 mm	100 mm	2.00 mm	1.74 kg
BKB45 110-15S	110 mm	150 mm	2.00 mm	2.00 kg
BKB45 110-20S	110 mm	200 mm	2.00 mm	2.25 kg
BKB45 110-30S	110 mm	300 mm	2.00 mm	2.89 kg
BKB45 110-40S	110 mm	400 mm	2.00 mm	3.67 kg
BKB45 110-50S	110 mm	500 mm	2.00 mm	4.56 kg
BKB45 110-60S	110 mm	600 mm	2.00 mm	5.68 kg
