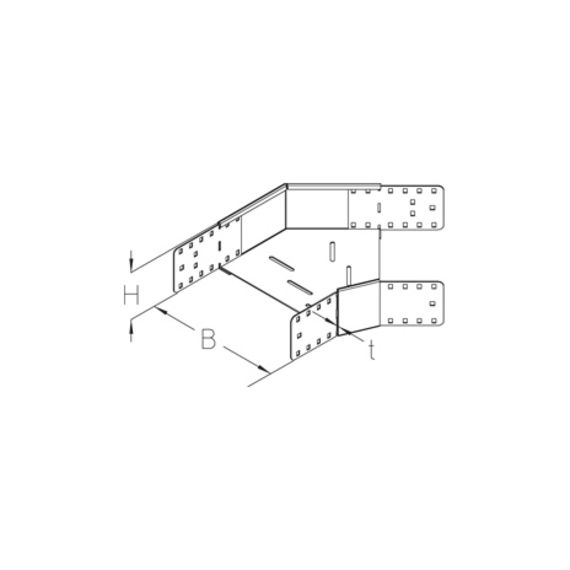

BKB45 100 floor duct bend, height = 100 mm

floor duct bend 45º for horizontal change of direction with integrated connectors

From a width ≥ 300 mm, one separating strip must be installed. From a width of ≥ 500 mm, two separating strips must be installed.

UL classified

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

	height	width	t material thickness	weight
BKB45 100-10S	100 mm	100 mm	2.00 mm	1.70 kg
BKB45 100-15S	100 mm	150 mm	2.00 mm	1.94 kg
BKB45 100-20S	100 mm	200 mm	2.00 mm	2.20 kg
BKB45 100-30S	100 mm	300 mm	2.00 mm	2.82 kg
BKB45 100-40S	100 mm	400 mm	2.00 mm	3.59 kg
BKB45 100-50S	100 mm	500 mm	2.00 mm	4.47 kg
BKB45 100-60S	100 mm	600 mm	2.00 mm	5.48 kg
