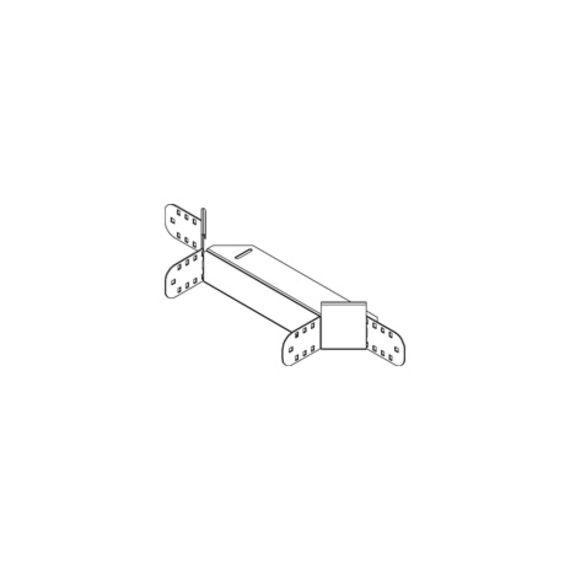

BKAA 100 floor duct attachment branch, height = 100 mm

From a width ≥ 300 mm, one separating strip must be installed. From a width of ≥ 500 mm, two separating strips must be installed.

UL classified

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

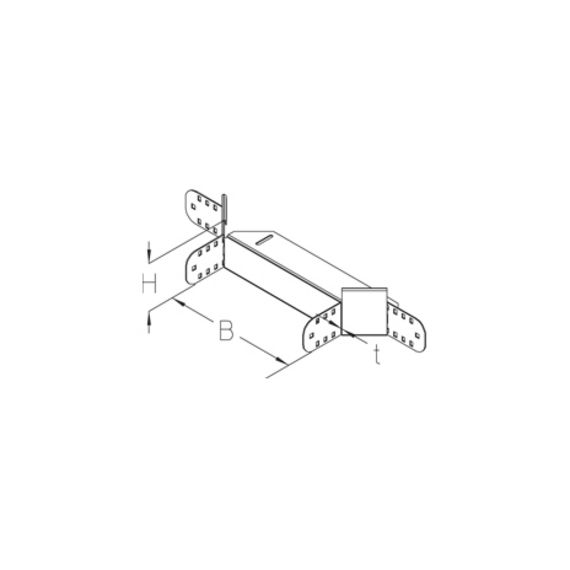

	height	width	t material thickness	weight
BKAA 100-10S	100 mm	100 mm	2.00 mm	1.31 kg
BKAA 100-15S	100 mm	150 mm	2.00 mm	1.46 kg
BKAA 100-20S	100 mm	200 mm	2.00 mm	1.54 kg
BKAA 100-30S	100 mm	300 mm	2.00 mm	1.76 kg
BKAA 100-40S	100 mm	400 mm	2.00 mm	1.97 kg
BKAA 100-50S	100 mm	500 mm	2.00 mm	2.19 kg
BKAA 100-60S	100 mm	600 mm	2.00 mm	2.41 kg
