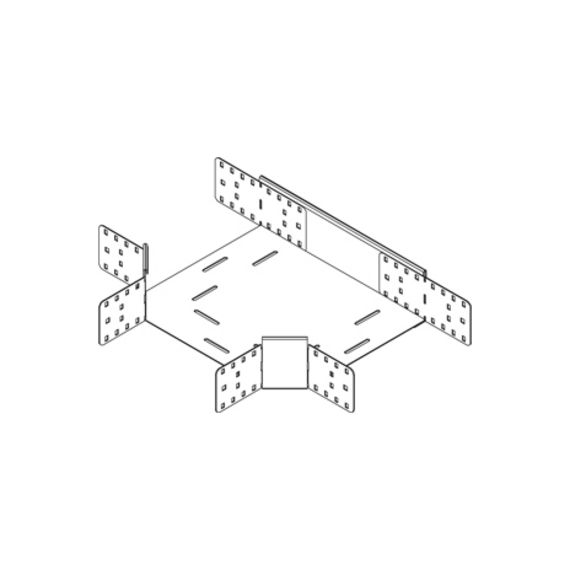

BKA 110 floor duct branch, height = 110 mm

floor duct branch as T-piece with integrated connectors

From a width ≥ 300 mm, one separating strip must be installed. From a width of ≥ 500 mm, two separating strips must be installed.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

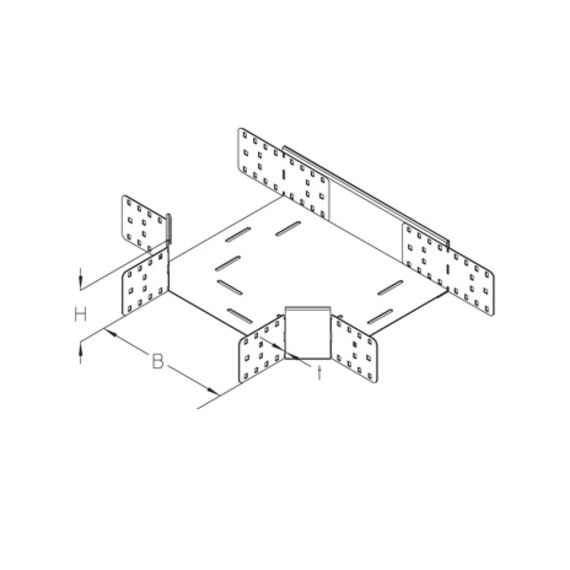

	height	width	t material thickness	weight
BKA 110-10S	110 mm	100 mm	2.00 mm	2.94 kg
BKA 110-15S	110 mm	150 mm	2.00 mm	3.39 kg
BKA 110-20S	110 mm	200 mm	2.00 mm	3.90 kg
BKA 110-30S	110 mm	300 mm	2.00 mm	5.15 kg
BKA 110-40S	110 mm	400 mm	2.00 mm	6.76 kg
BKA 110-50S	110 mm	500 mm	2.00 mm	8.63 kg
BKA 110-60S	110 mm	600 mm	2.00 mm	10.85 kg
