BKSDR-RHP floor duct riser bend cover with non-slip embossing

Downloads

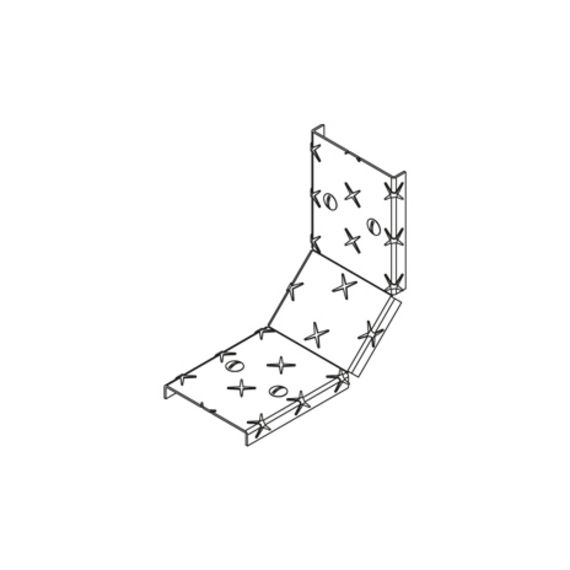

Cover with non-slip embossing and turning bolts for floor duct riser bend.

The cover consists of a 2 mm thick galvanized sheet steel with 1 mm non-slip embossing and slip resistance R12 according to DIN 51130. In compliance with the installation specifications and a maximum compartment size of 200 mm, the cover guarantees a tested load capacity of at least 500 kg according to EN 50085-2-2.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

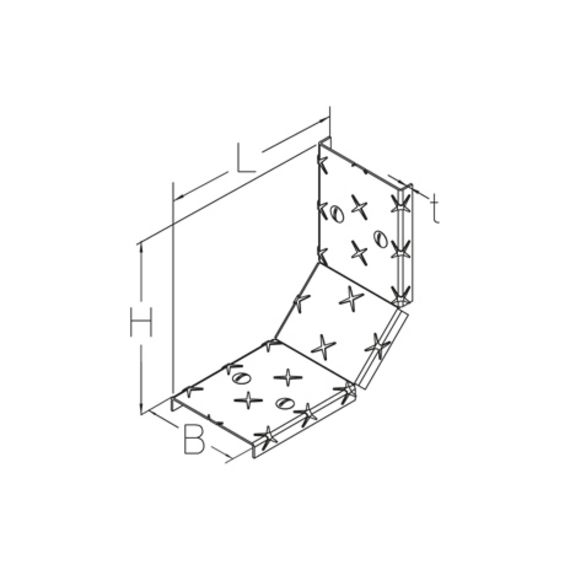

	height	width	length	t material thickness	P_maxMaximum load	slip resistance class slip resistance according to DIN 51130	weight
BKSDR-RHP 10S	200 mm	100 mm	200 mm	2.00 mm	5 kN	R12	0.76 kg
BKSDR-RHP 15S	200 mm	150 mm	200 mm	2.00 mm	5 kN	R12	1.02 kg
BKSDR-RHP 20S	200 mm	200 mm	200 mm	2.00 mm	5 kN	R12	1.29 kg
BKSDR-RHP 30S	200 mm	300 mm	200 mm	2.00 mm	5 kN	R12	1.82 kg
BKSDR-RHP 40S	200 mm	400 mm	200 mm	2.00 mm	5 kN	R12	2.35 kg
BKSDR-RHP 50S	200 mm	500 mm	200 mm	2.00 mm	5 kN	R12	2.88 kg
BKSDR-RHP 60S	200 mm	600 mm	200 mm	2.00 mm	5 kN	R12	3.41 kg
