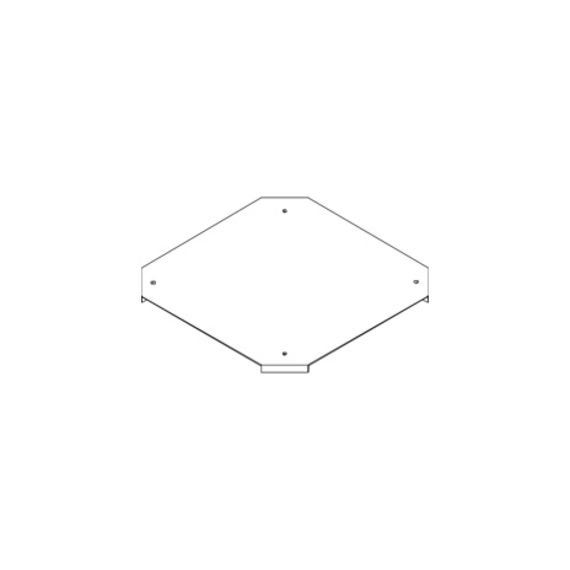

In compliance with the installation specifications and a maximum compartment size of 200 mm, the cover guarantees a tested load capacity of at least 500 kg according to EN 50085-2-2.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

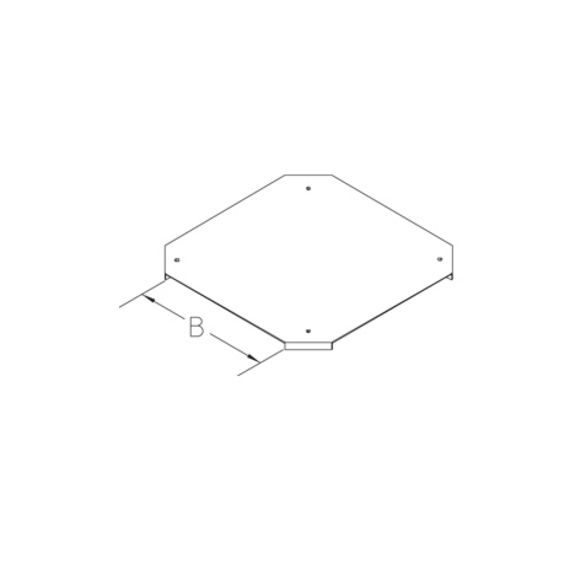

| width | t material thickness | PmaxMaximum load | weight | ||
|---|---|---|---|---|---|
| BKKDR 10S | 100 mm | 2.00 mm | 5 kN | 0.76 kg | |
| BKKDR 15S | 150 mm | 2.00 mm | 5 kN | 1.14 kg | |
| BKKDR 20S | 200 mm | 2.00 mm | 5 kN | 1.60 kg | |
| BKKDR 30S | 300 mm | 2.00 mm | 5 kN | 2.75 kg | |
| BKKDR 40S | 400 mm | 2.00 mm | 5 kN | 4.21 kg | |
| BKKDR 50S | 500 mm | 2.00 mm | 5 kN | 5.99 kg | |
| BKKDR 60S | 600 mm | 2.00 mm | 5 kN | 8.08 kg |
