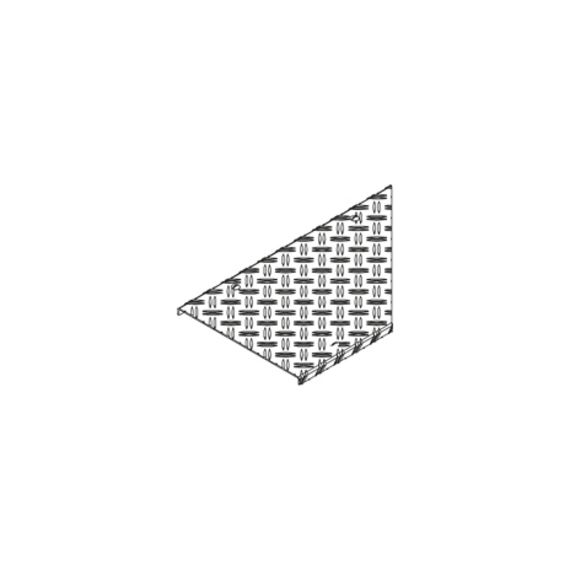

The cover consists of a 2.5 mm thick aluminum sheet with 1.5 mm anti-slip embossing and slip resistance R10 according to DIN 51130. In compliance with the installation specifications and a maximum compartment size of 200 mm, the cover guarantees a tested load capacity of at least 300 kg according to EN 50085-2-2.
Aluminium

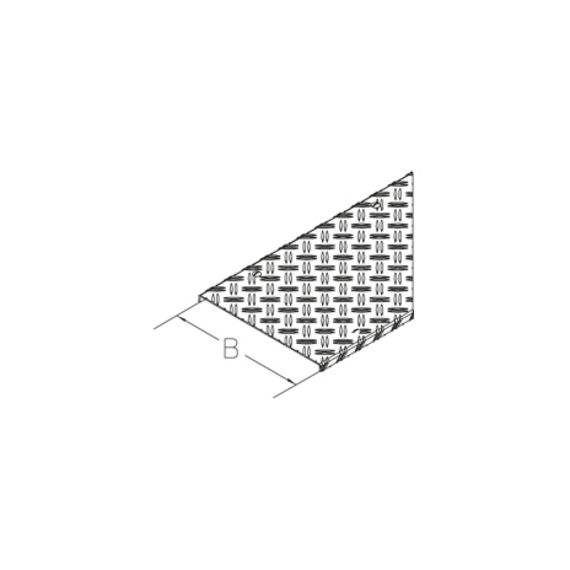

| width | t material thickness | PmaxMaximum load | slip resistance class slip resistance according to DIN 51130 | weight | ||
|---|---|---|---|---|---|---|
| BKGRDR-WZB 10AL | 100 mm | 2.50 mm | 3 kN | R10 | 0.32 kg | |
| BKGRDR-WZB 15AL | 150 mm | 2.50 mm | 3 kN | R10 | 0.47 kg | |
| BKGRDR-WZB 20AL | 200 mm | 2.50 mm | 3 kN | R10 | 0.62 kg | |
| BKGRDR-WZB 30AL | 300 mm | 2.50 mm | 3 kN | R10 | 0.99 kg | |
| BKGRDR-WZB 40AL | 400 mm | 2.50 mm | 3 kN | R10 | 1.44 kg | |
| BKGRDR-WZB 50AL | 500 mm | 2.50 mm | 3 kN | R10 | 1.95 kg | |
| BKGRDR-WZB 60AL | 600 mm | 2.50 mm | 3 kN | R10 | 2.54 kg |
