Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

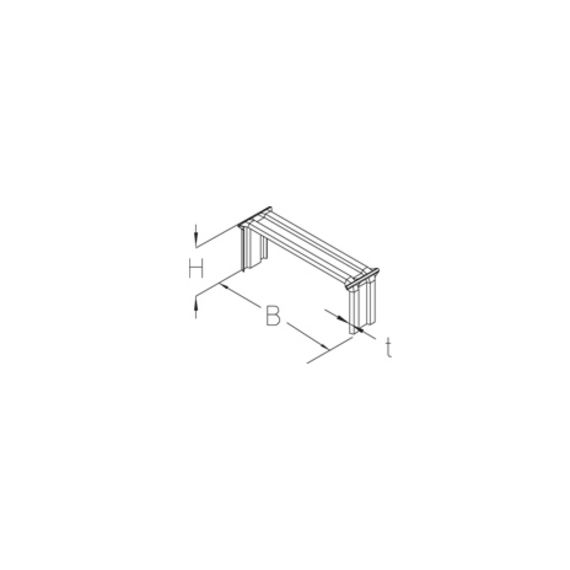

| height | width | t material thickness | weight | ||
|---|---|---|---|---|---|
| BKDU 110-20F | 110 mm | 200 mm | 2.00 mm | 0.46 kg | |
| BKDU 110-30F | 110 mm | 300 mm | 2.00 mm | 0.58 kg | |
| BKDU 110-40F | 110 mm | 400 mm | 2.00 mm | 0.7 kg | |
| BKDU 110-50F | 110 mm | 500 mm | 2.00 mm | 0.81 kg | |
| BKDU 110-60F | 110 mm | 600 mm | 2.00 mm | 0.93 kg |
